DIMENSIONS
In Package
Height x Width x Depth:
4.5 x 8.75 x 2.25 in (11.43 x 22.225 x 5.715 cm)
Weight: 21.6 oz (612.36 G)
TECHNICAL SPECIFICATIONS
4 channels of balanced analog audio over shielded CAT5e, CAT6 or CAT7
Supports phantom power on any or all channels
XLR male and female on each of the four channels
Removable internal jumper allows
Compatible with AES3, DMX, COM, and other 3-pin XLR based signals
COMPATIBLE WITH
Analog audio (including phantom power*)
DMX signals
AES3
Intercom
*Requires shielded cable for full functionality
PACKAGE CONTENTS
CAT Box 8
Rubber foot pad
User documentation
WARRANTY INFORMATION
PART NUMBER
Male and Female XLR: CB851

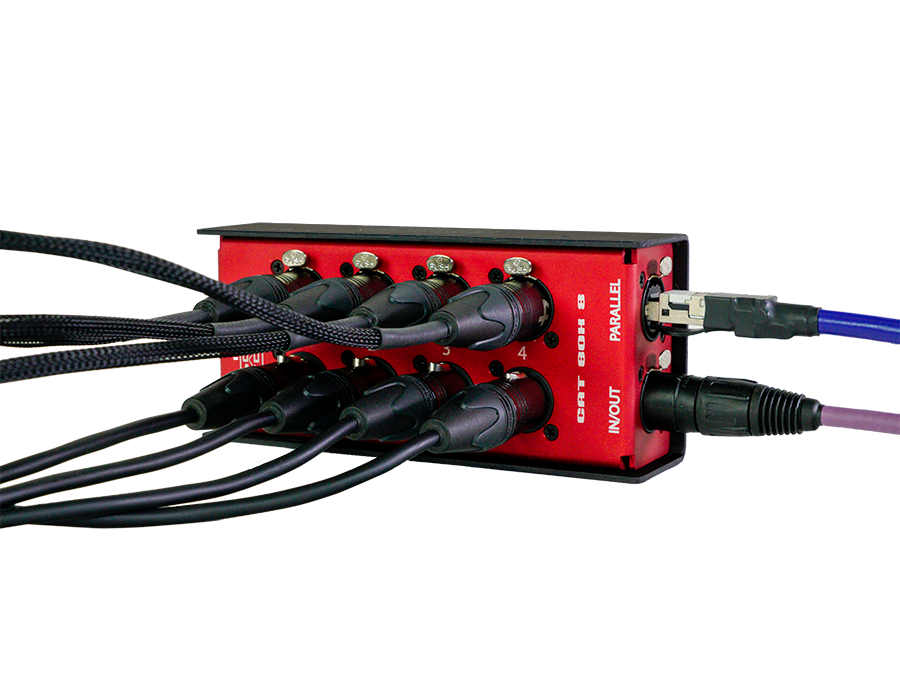

Build the perfect stage snake system around the versatile and durable SoundTools CAT Box 8. The SoundTools CAT Box 8 offers both a male XLR and a female XLR on each of the four channels allowing the CAT Box 8 to be used for inputs, outputs, or a combination. Minimize the number of cables required by running up to four channels of analog audio, DMX, AES3, or COM lines through a single shielded CAT cable.The disconnectable CAT Box stage boxes can be daisy-chained and used in multiple configurations to build the optimum modular snake system.

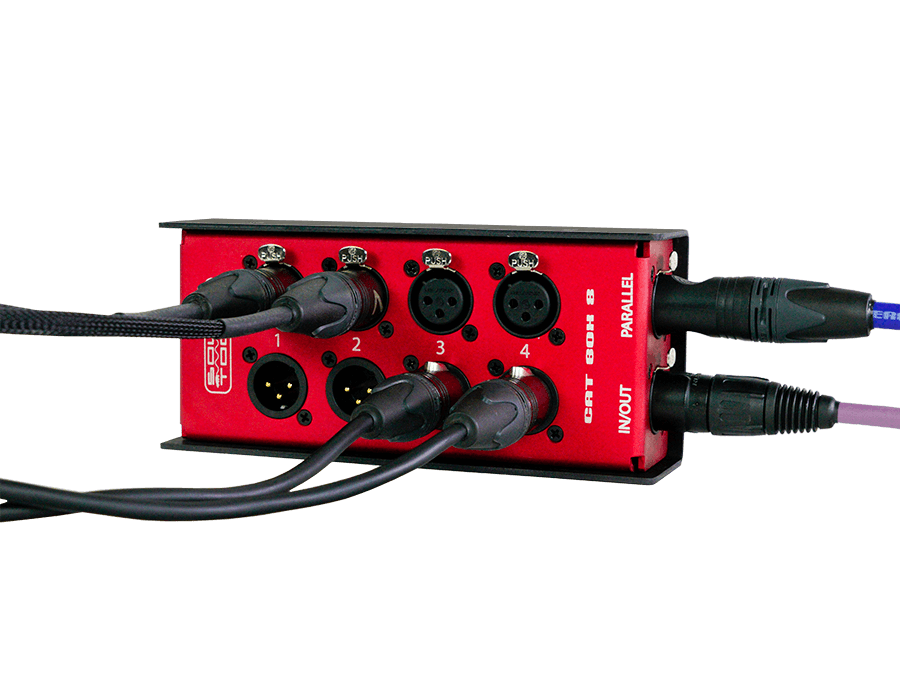

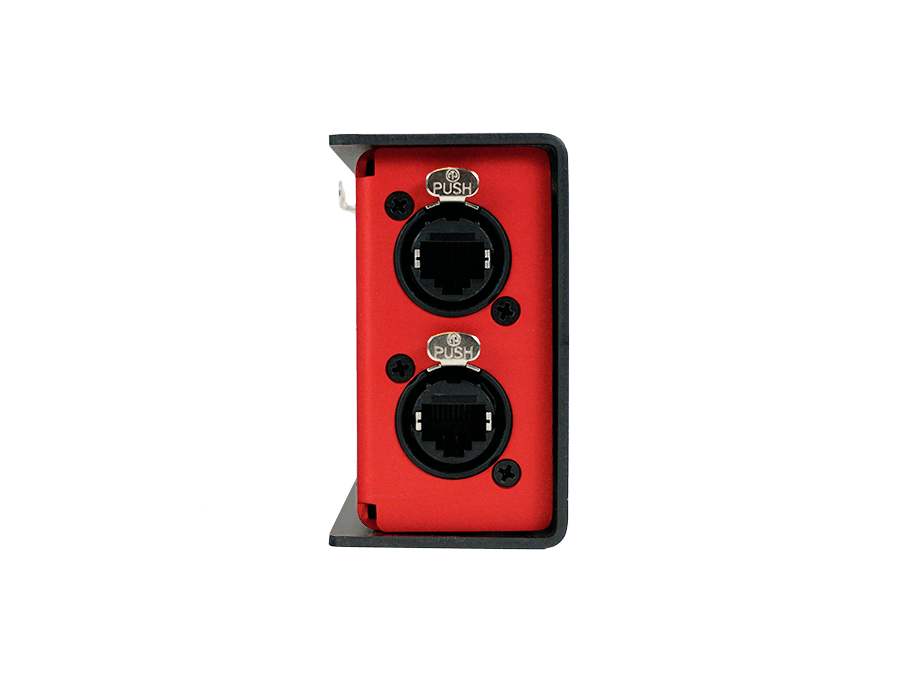

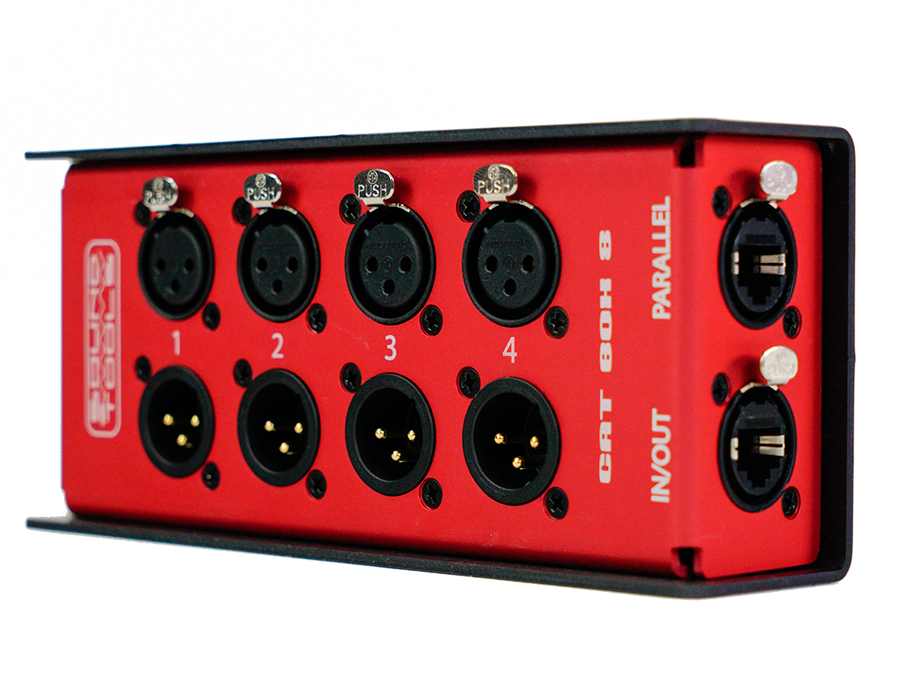

The SoundTools CAT Box offers four XLR female and four XLR male connectors, and an etherCON input and etherCON parallel output. This all-analog, fully passive stage box can carry up to four channels or analog mic level, analog line level, AES3, DMX, or intercom signals.Not all disconnects are created equally. Because of its design, the SoundTools CAT Box 8 can be used in a multitude of applications.
- Send multiple signal formats down a single shielded CAT cable
- Use as a low-cost hard-wire split
- Daisy-chain units and drop the same channels in multiple locations
- Connect two male or two female CAT Boxes together to create M-M or F-F adaptors
- Remove an internal ribbon cable jumper to convert a CAT Box 8 into two CAT Box 4 units

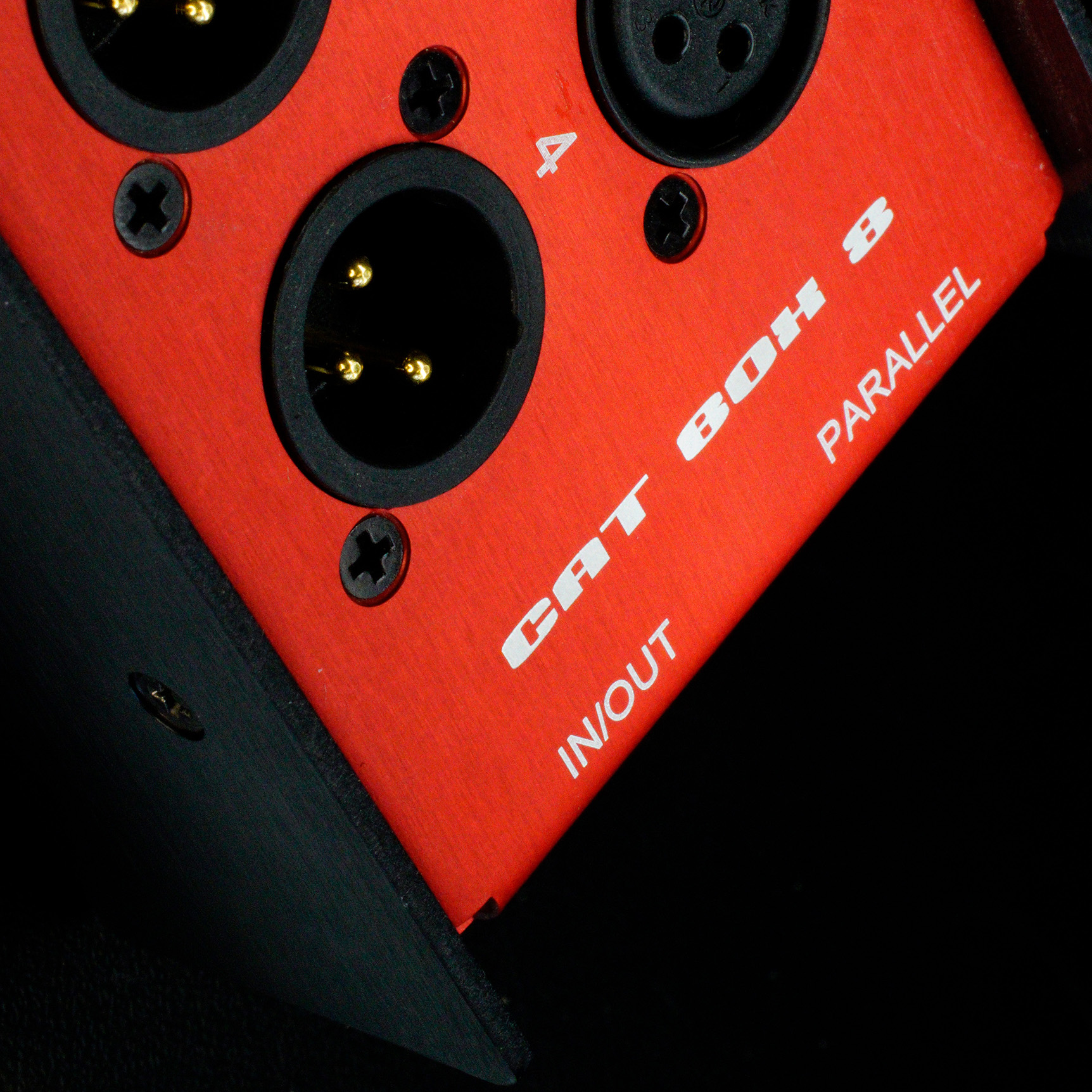

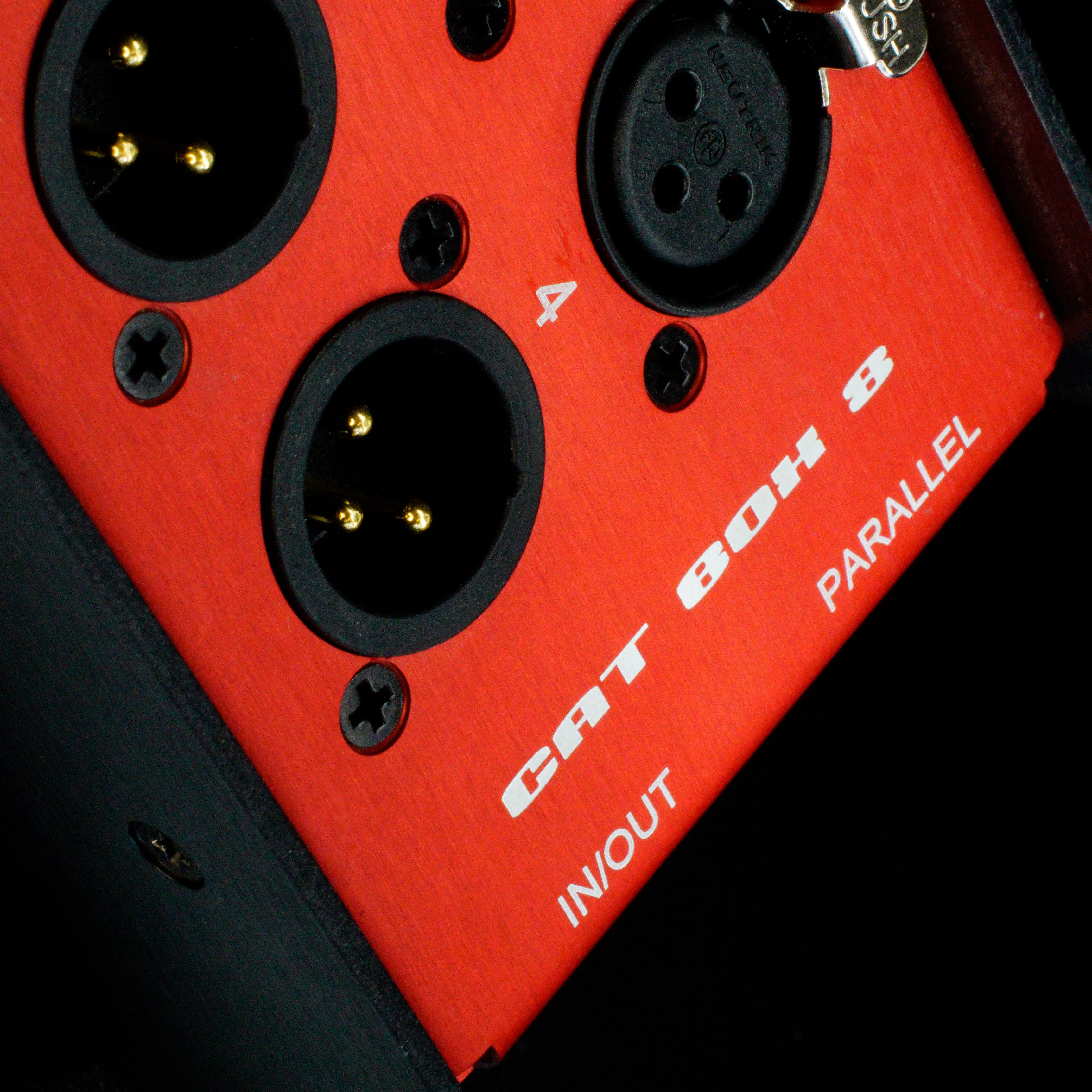

Not only is the SoundTools CAT Box 8 designed to work flawlessly, but we created it to look great too. SoundTools CAT Boxes are constructed with anodized machined aluminum and finished with stainless steel screws, so they are rust-resistant and rugged enough to handle life on stage. Stylish black and red coloring is finished with a laser-etched SoundTools logo. Our clearly-labeled inputs and outputs simplify set up and tear down, making this the stage drop box you'll be reaching for again and again.SoundTools is founded and run by audio professionals just like you. We know how much your happiness depends on high-quality tools that work every time. The SoundTools CAT Box 8 is covered by our Happy Human Warranty. If you're not happy with it within the first year, you can return it for a refund. At any time after that, if it fails, contact us and we'll send you a replacement.
All SoundTools products are covered by a LIFETIME Happy Human warranty. At any point during the first year of ownership, all SoundTools products can be returned to the original place of purchase for a replacement or full refund. Simply contact the place of purchase or see https://soundtools.com/support to arrange the warranty coverage and arrange for SoundTools to cover shipping costs.
After the one year period all SoundTools products have Lifetime coverage against defects or malfunction and SoundTools will replace or repair the unit at no cost. If you wish to start a claim under the Lifetime Warranty contact the SoundTools dealer closest to you, or reach out directly to SoundTools support. Replacement units may be refurbished or B-Stock. SoundTools will cover shipment of the replacement or repaired unit.
*In the event your SoundTools product is discontinued, give us a shout and we will figure it out.
**For damaged SoundTools cables over one year past purchase date, the warranty covers no cost re-termination to the longest viable length.
- Do I need to use shielded CAT5 cable?
Yes. Each of the channels share a common ground. This is especially important with digital signals.
- How far can I send a my mic lines?
For balanced analog we've achieved distances of over 600ft using our SuperCAT cable. The results will vary with other CAT5 brands. For digital signals we recommend distances up to 330 ft as per AES/EBU standards.
- Is there a ground lift?
The CAT Box 8 comes with an internal jumper which will disconnect the ground from the box. Just open the box (remove 4 screws) and move the jumper from ground to ground lift. Helpful if you run into issues with the metal body grounding to something else.
- Can I use the CAT Box 8 with the SoundTools CAT Tails?
Absolutely! All of the SoundTools Analog Audio over CAT 5 family will work together, bringing audio over CAT to the places you need it most. Connect CAT Box 8 to CAT Tails or CAT Racks, split signals using the parallel/thru jacks, and route your audio where you want.
- Can I send audio in both directions or do I need another gender CAT Box 8?
The CAT Box 8 is capable of sending or receiving signals, just like an analog snake. You can use either the male or female XLRs, or both (which is a signal split). When sending mixed signals a high quality CAT cable is encouraged.
- Is shielded cable really required?
The short answer is no. But in order to use phantom power and to minimize noise, we strongly suggest you use a properly shielded cable. You can check if your cable is shielded by checking for continuity on the RJ45 jack using a multi-meter. Still not sure? Just purchase SoundTools SuperCAT cable and you know you'll be covered.
- Can I use it with my (digital console)?
While the CAT Box 8 will work with any console on the market, it is important to note that it does not do any D/A conversion. The beauty of the CAT Box is that it sends analog audio over lightweight CAT cable, no conversion required. Hook directly up to your XLR connections and let CAT Box do the rest.
- Do you have a wiring diagram available?
You can download a PDF version of the CAT Family Wiring Diagram HERE
