- -Run 12 channels of audio or COM through 3 Cat5e cable lines
- -Manufactured for reliability with touring in mind

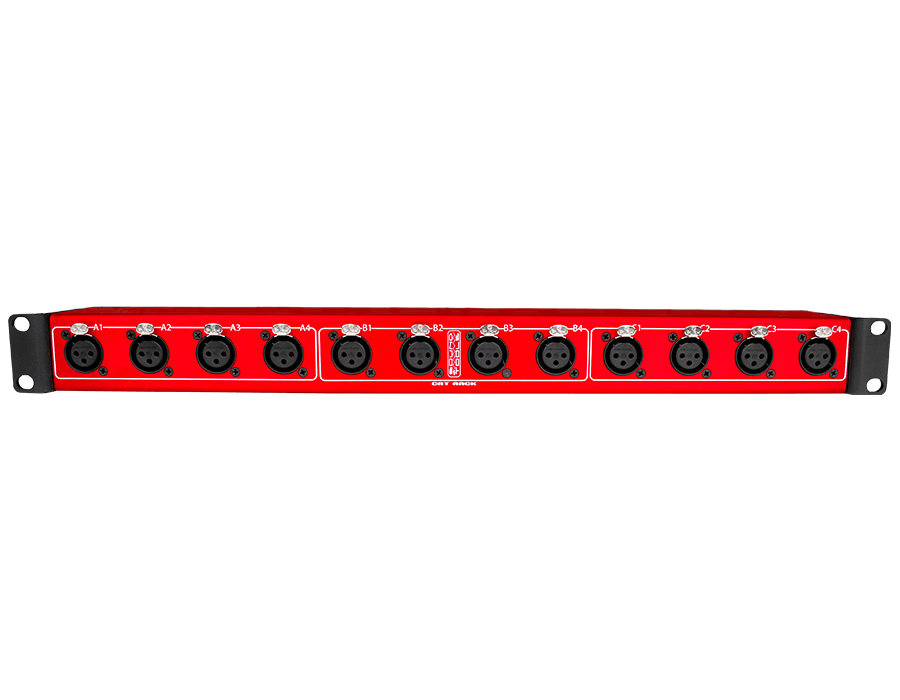

- -12 male or female XLR connections, 6 etherCON connections
- -Custom configurations available on request
- -Fits in 1U rack slot
DIMENSIONS
Unit
Height x Width x Depth:
2.5 x 18.88 x 1.75 in (6.35 x 47.95 x 4.45 cm)
Weight: 25.6 oz (724.75 G)
In Package
Height x Width x Depth:
3.25 x 19.5 x 2 in (8.26 x 49.53 x 5.08 cm)
Weight: 32 oz (907.18 G)
COMPATIBLE WITH

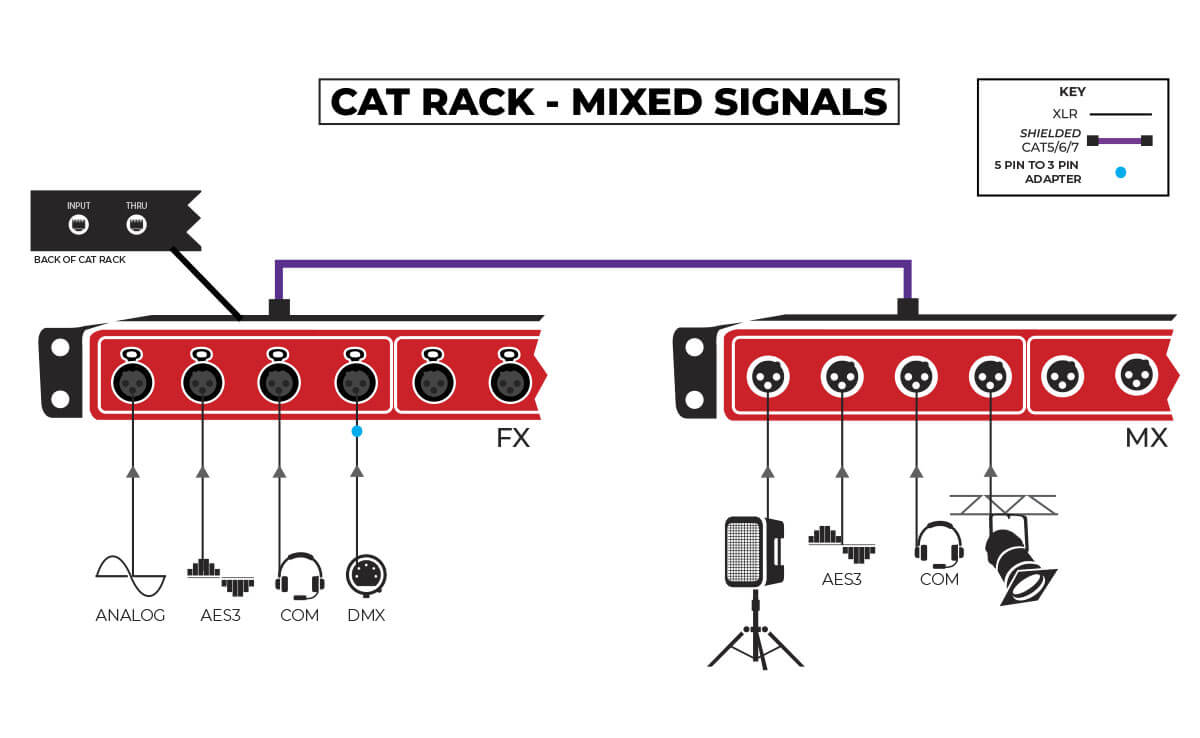

Analog audio (including phantom power*)
DMX signals
AES3
Intercom
*Requires shielded cable for full functionality
TECHNICAL SPECIFICATIONS
12 channels of balanced audio 3 over Cat5e cables
Removable and reversible rack ears
Compatible with DMX, COM and other 3-pin XLR based COM systems
AES72-2O compliant
Available in male and female configurations
DOCUMENTATION
PACKAGE CONTENTS
Rack mountable CAT Rack
2 rack ears and screws (rack screws not included)
User documentation
WARRANTY INFORMATION
Lifetime Happy Human Warranty
PART NUMBER
Male: CRMMMX
Female: CRFFFX

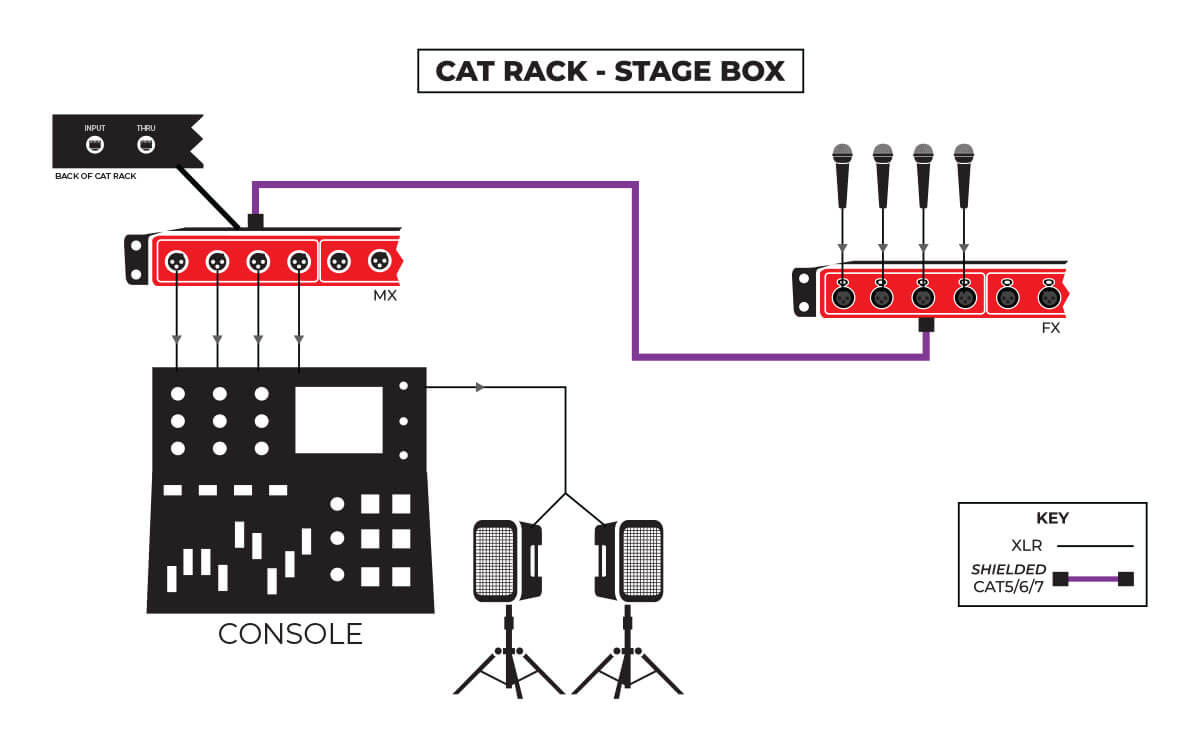

The SoundTools CAT Rack is a rack mount stage box capable of delivering up to 12 channels of audio and data from XLR or DMX sources over three CAT cable lines. Fully passive, these all-analog stage boxes are customizable to deliver the best in audio and data without interference or signal loss.

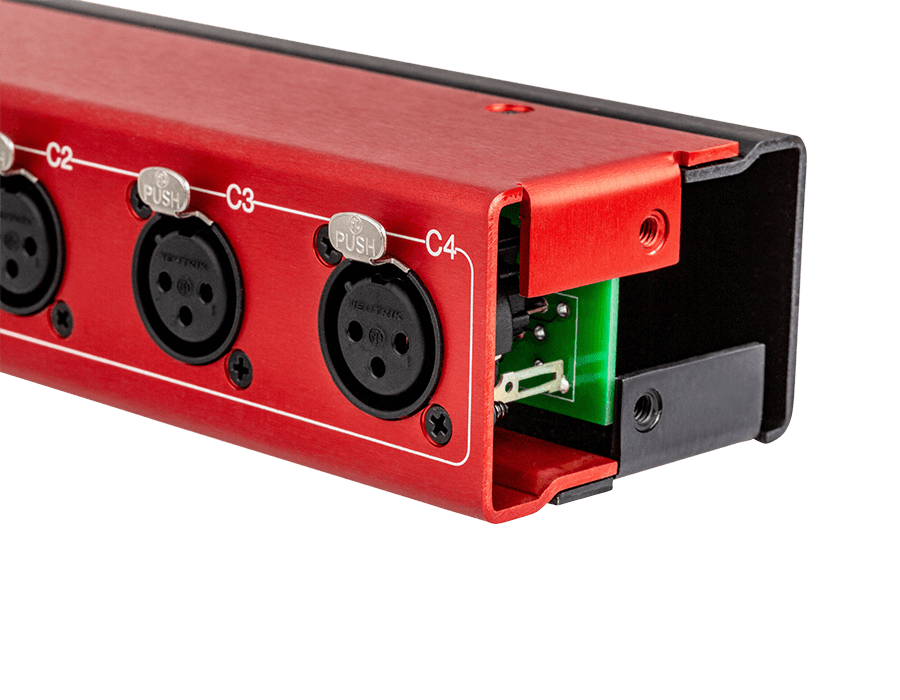

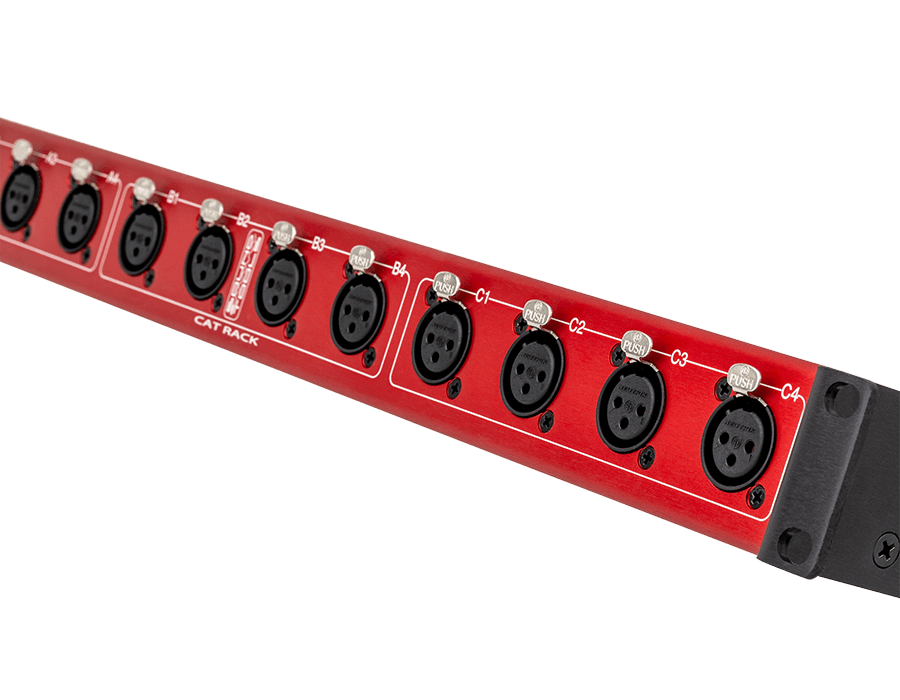

The SoundTools CAT Rack is the ultimate in rack-mounted XLR-to-Cat stage boxes. Twelve XLR ins or outs (call us for custom builds) line one side of the unit, and 3 pairs of etherCon ins and outs (6 connections total) are on the other side. CAT Racks are all-analog and designed with machined anodized aluminum and stainless steel screws for ultimate durability. When used with shielded Cat5e cable or better, the CAT Rack allows for the use of phantom power.

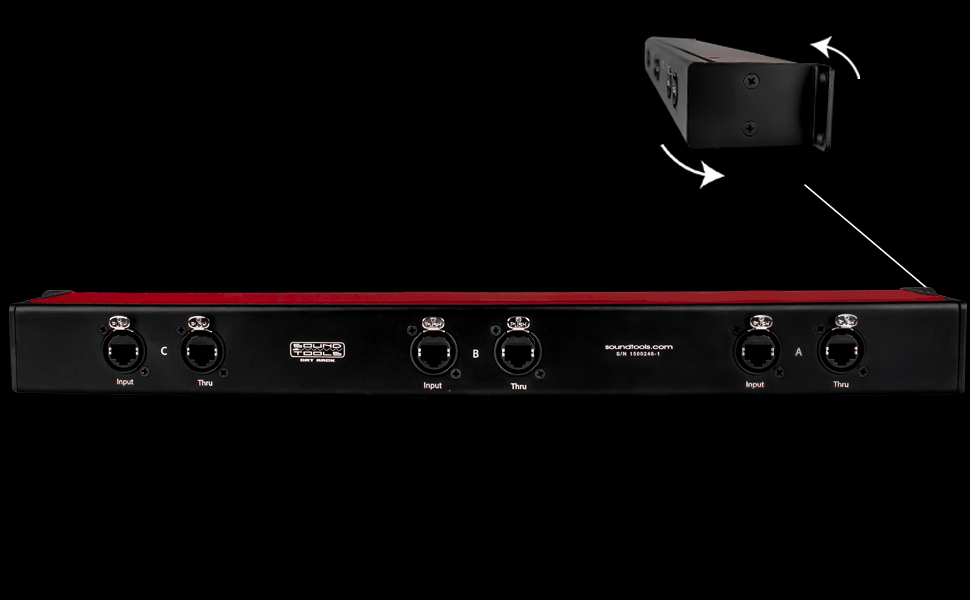

Easily reverse the rack ears to change which way the rack is mounted by unscrewing the two screws on each side.
All SoundTools products are covered by a LIFETIME Happy Human warranty. At any point during the first year of ownership, all SoundTools products can be returned to the original place of purchase for a replacement or full refund. Simply contact the place of purchase or see https://soundtools.com/support to arrange the warranty coverage and arrange for SoundTools to cover shipping costs.
After the one year period all SoundTools products have Lifetime coverage against defects or malfunction and SoundTools will replace or repair the unit at no cost. If you wish to start a claim under the Lifetime Warranty contact the SoundTools dealer closest to you, or reach out directly to SoundTools support. Replacement units may be refurbished or B-Stock. SoundTools will cover shipment of the replacement or repaired unit.
*In the event your SoundTools product is discontinued, give us a shout and we will figure it out.
**For damaged SoundTools cables over one year past purchase date, the warranty covers no cost re-termination to the longest viable length.
- Do I need to use shielded CAT5 cable?
Yes. Each of the channels share a common ground. This is especially important with digital signals.
- How far can I send a my mic lines?
For balanced analog we've achieved distances of over 600ft using our SuperCAT cable. The results will vary with other CAT5 brands. For digital signals we recommend distances up to 330 ft as per AES/EBU standards.
- Can I use the CAT Rack with the SoundTools CAT Tails or CAT Box?

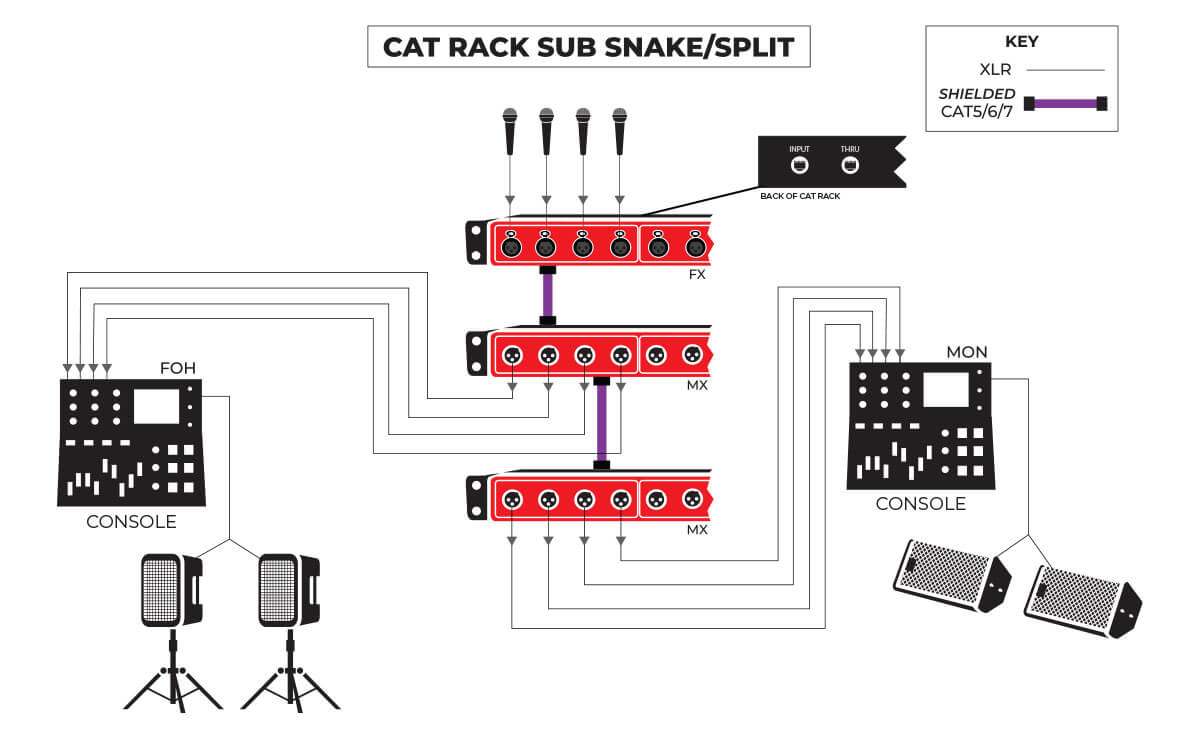

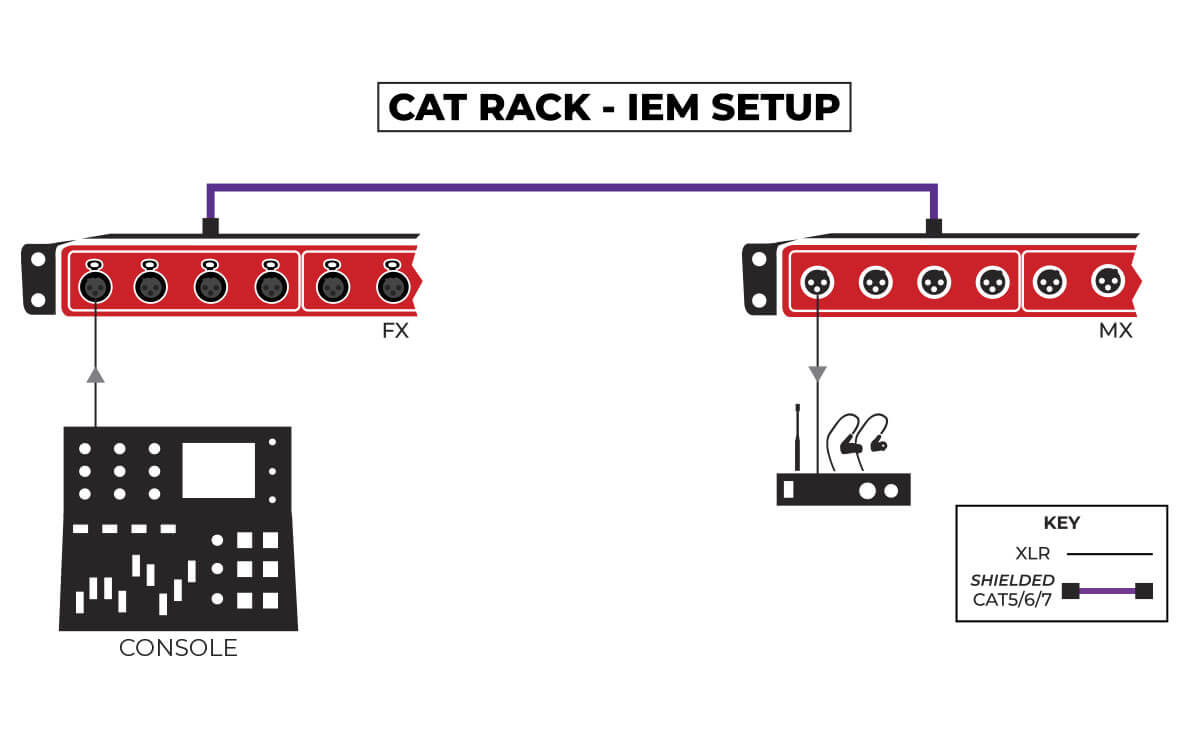

Absolutely! All of the SoundTools Analog Audio over CAT family will work together, bringing audio over CAT to the places you need it most. Connect CAT Box to CAT Tails or CAT Racks, split signals using the parallel/thru jacks, and route your audio where you want.
- Can I send audio in both directions or do I need another gender CAT Rack?
Absolutely! All of the SoundTools Analog Audio over CAT family will work together, bringing audio over CAT to the places you need it most. Connect CAT Rack to CAT Tails or CAT Box, split signals using the parallel/thru jacks, and route your audio where you want.
- Is shielded cable really required?
The short answer is no. But in order to use phantom power and to minimize noise, we strongly suggest you use properly shielded cable. You can check if your cable is shielded by checking for continuity on the RJ45 jack using a multi-meter. Still not sure? Just purchase SuperCAT and you know you'll be covered.
- Can I use it with my (digital console)?
While the CAT Rack will work with any console on the market, it is important to note that it does not do any D/A conversion. The beauty of the CAT Rack is that it sends analog audio over lightweight CAT cable, no conversion required. Hook directly up to your XLR connections and let CAT Rack do the rest.
- Do you have a wiring diagram available?
You can download a PDF version of the CAT Family Wiring Diagram HERE
SoundTools SuperCAT XM is our most impressive cable yet, guaranteed to run AES50 without pops or dropouts over lengths up to 110 meters.
