- Perfect for lightweight, portable set ups for DJs, weddings, or recordings.
- Four 24” AES3 grade cables plug directly into analog or digital consoles.
- Compatible with 48-volt phantom power when using shielded Cat5e or better cable.

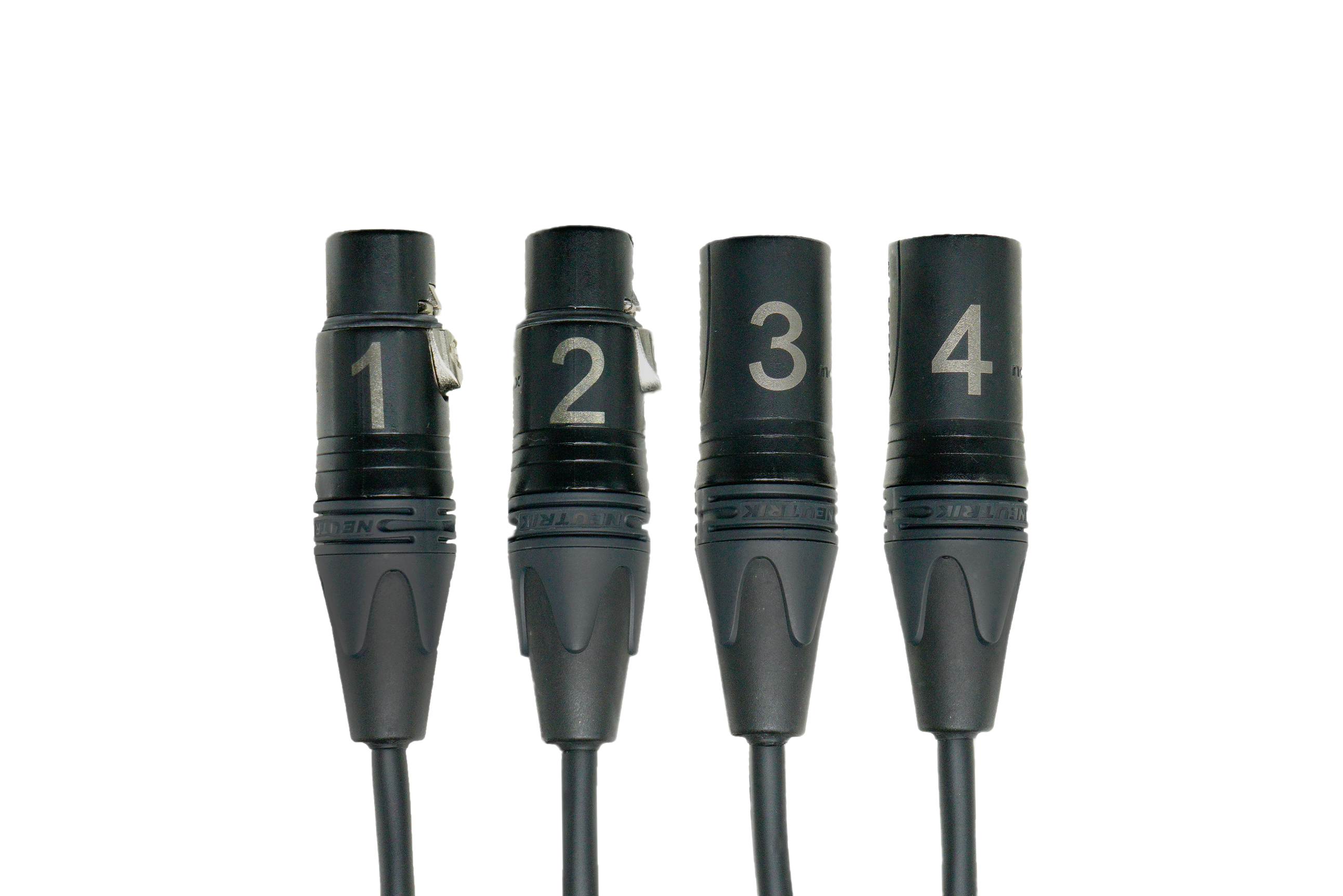

- Four channels available in 2 female XLR, 2 male XLR or 2 male XLR, 2 female XLR configurations with clearly laser-etched numbers to keep track of channels.
DIMENSIONS
Unit
Height x Width x Depth:
1.475 x 29 x 1.475 in (3.75 x 73.66 x 3.75 cm)
Weight: .6 oz (17 G)
In PackageHeight x Width x Depth:
4.5 x 8.75 x 2.25 in (11.43 x 22.23 x 5.72 cm)
Weight: 16 oz (453.59 G)
COMPATIBLE WITH
Analog audio (including phantom power*)

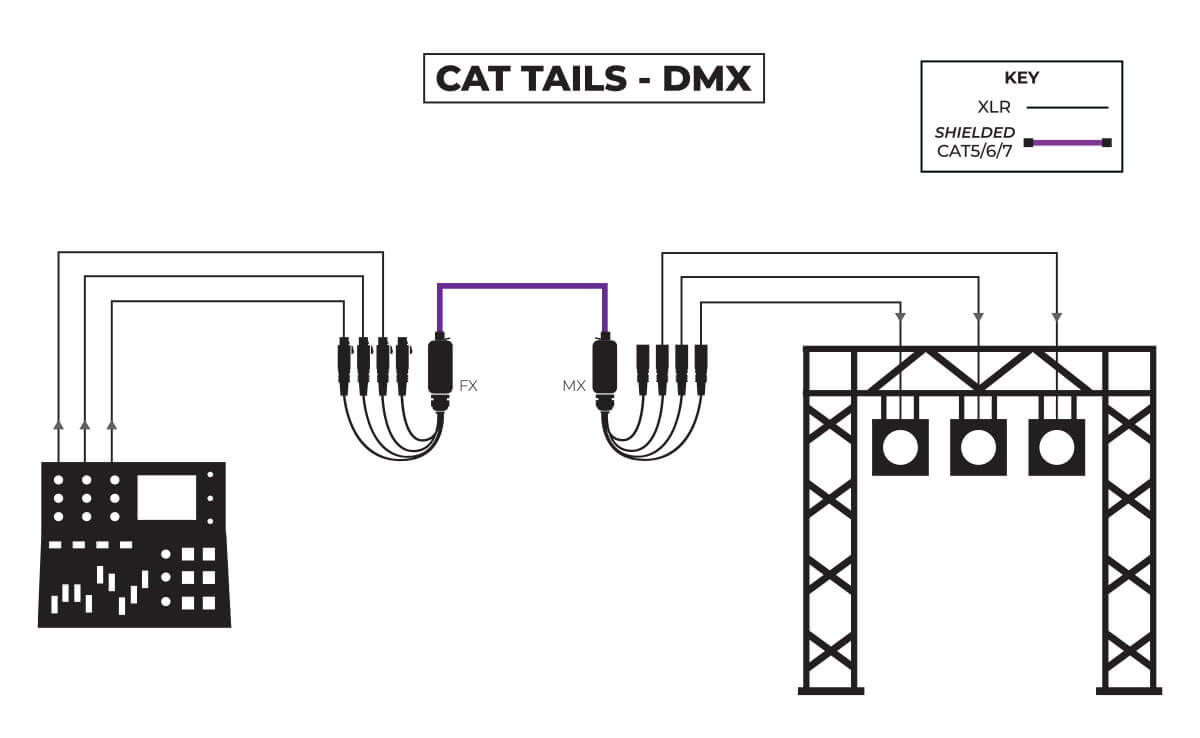

DMX signals
AES3
Intercom
*Requires shielded cable for full functionality
TECHNICAL SPECIFICATIONS
4 channels of balanced analog audio over Cat5
Two XLR Inputs and Two XLR Outputs
4 high quality AES3 cable breakouts
Compatible with DMX, COM and other 3-pin XLR based COM systems
AES72-2O compliant
Available in 2 male/2 female or 2 female/2 male configurations

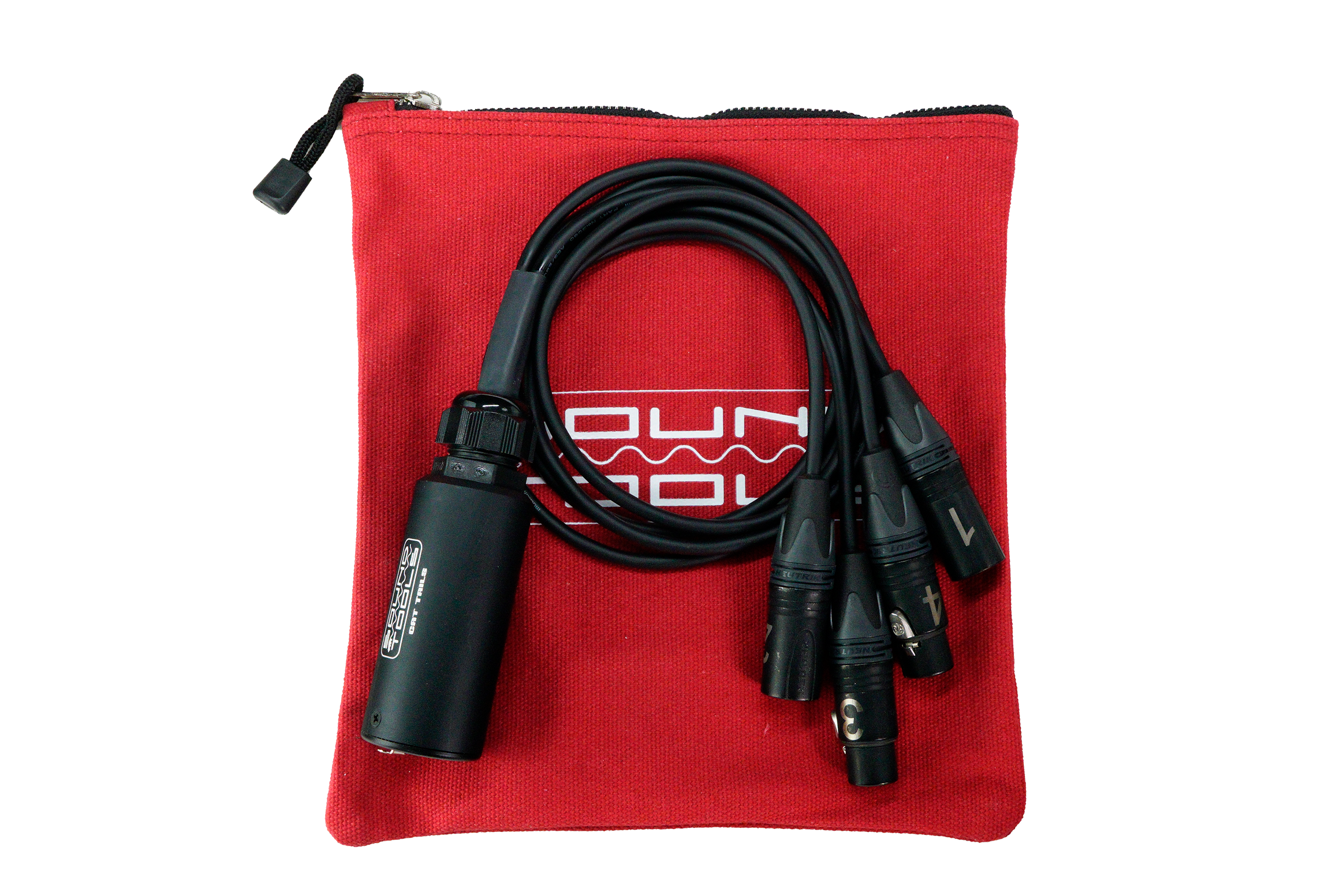

PACKAGE CONTENTS
CAT Tail (male-female or female-male unit)
User documentation
WARRANTY INFORMATION
Lifetime Happy Human Warranty
PART NUMBER

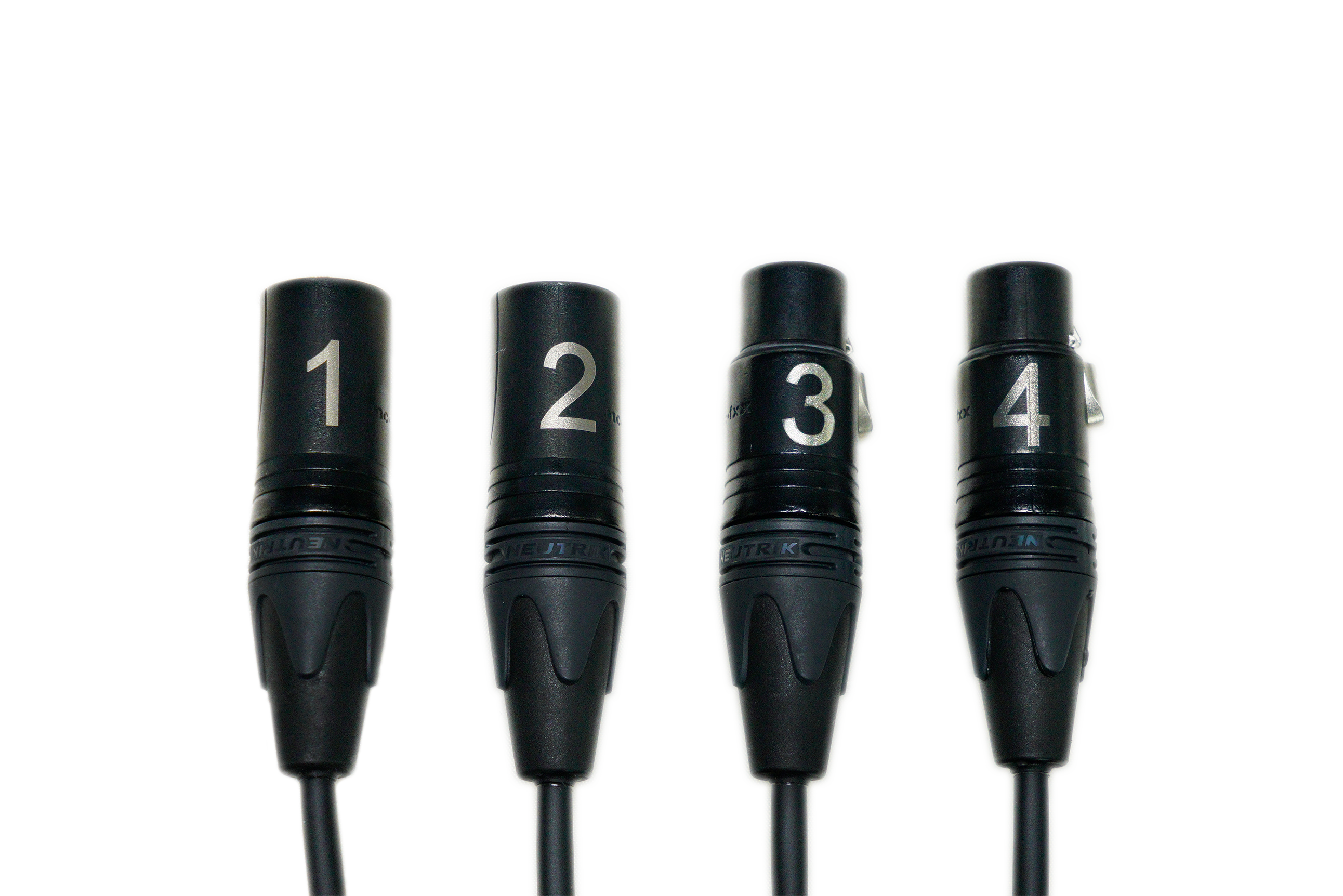

CTMFX : 2 Male XLRs (Outputs) + 2 Female XLRs (Inputs)

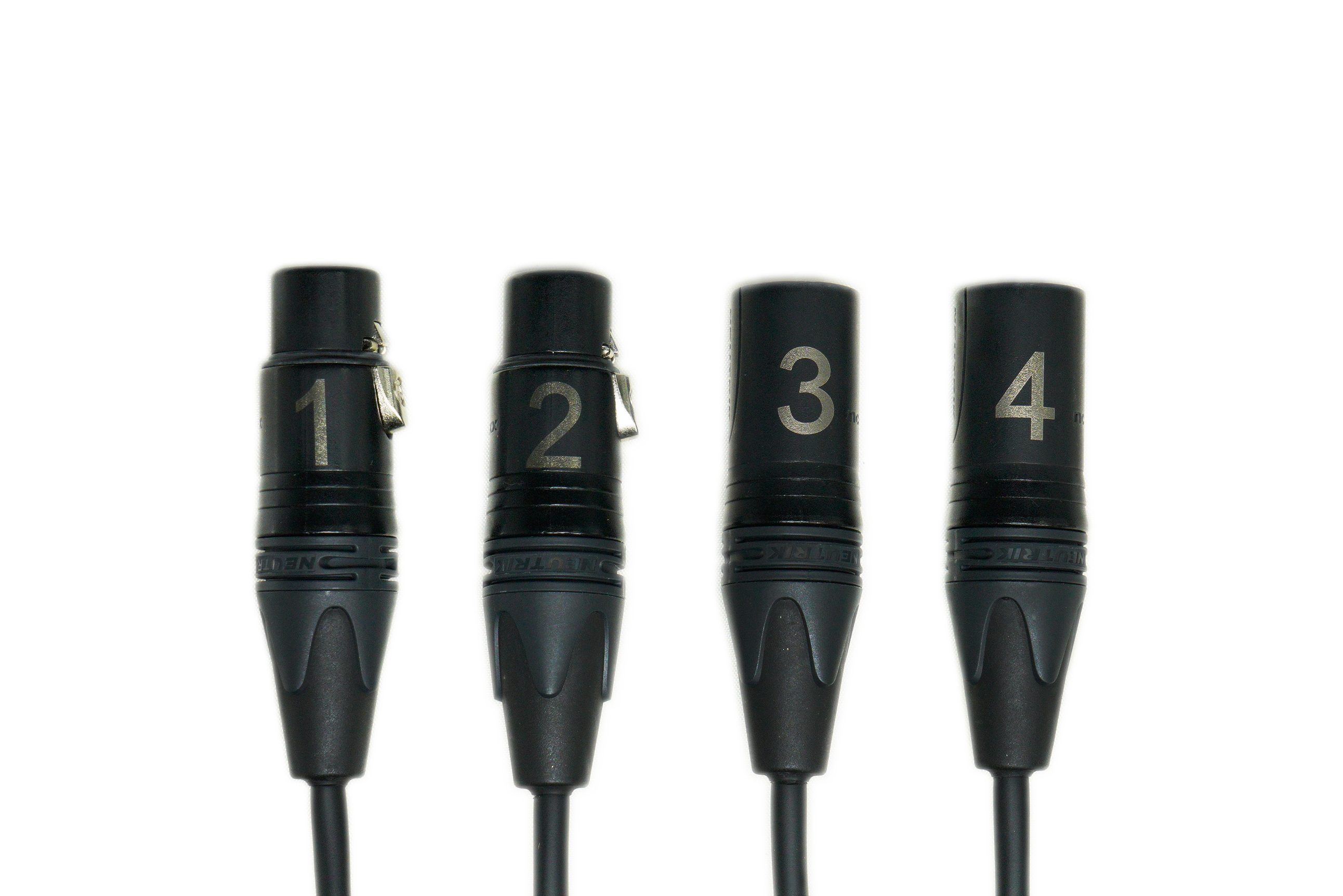

CTFMX : 2 Female XLRs (Inputs) + 2 Male XLRs (Outputs)

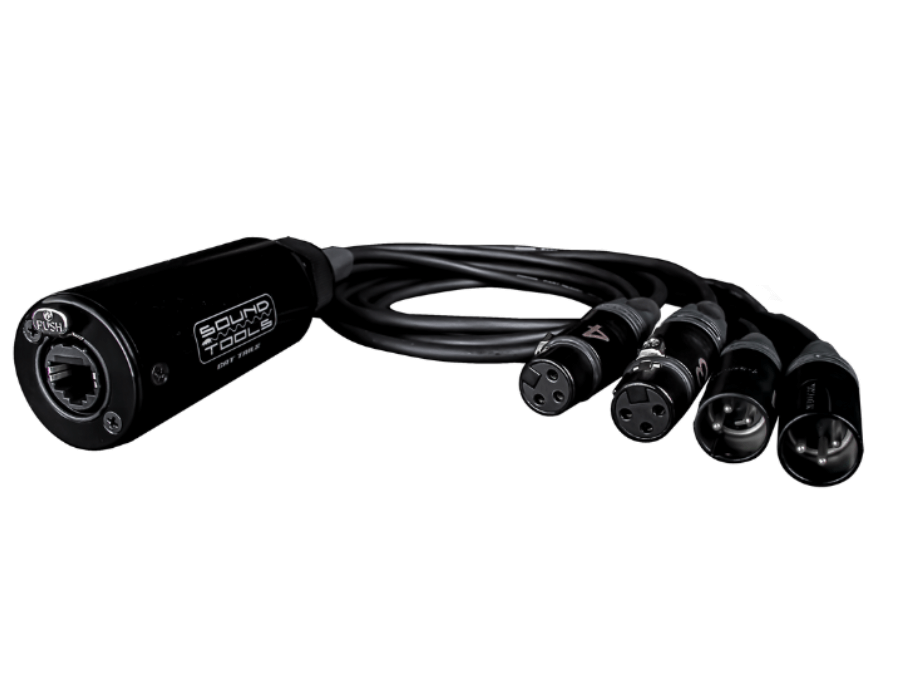

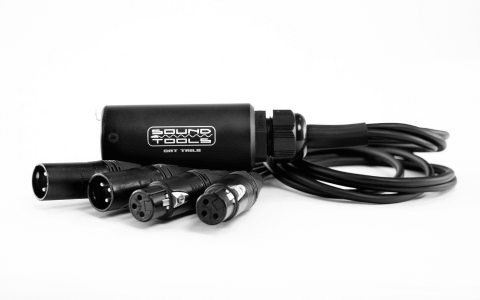

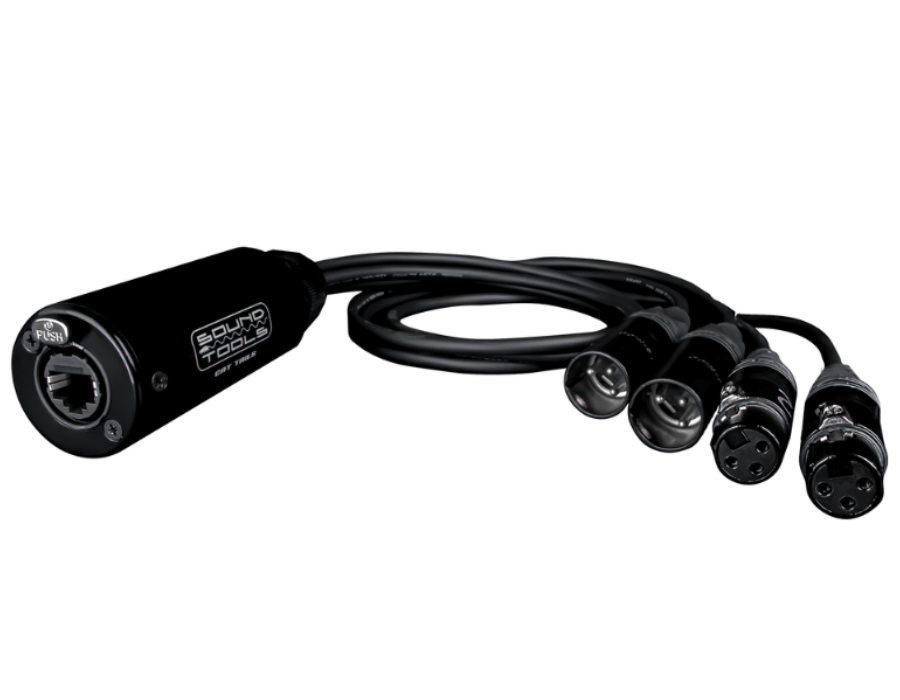

CAT Tails Send and Receive units allow you to easily run 2 lines in and 2 lines out, over just one shielded Category 5e or better cable. Each CAT Tails send-receive unit breaks out to 2 female XLR connectors and 2 male XLR connectors. Great for smaller jobs like DJ or wedding set ups, or for quick and easy gender turnarounds.
All SoundTools products are guaranteed with our Happy Human Warranty to be reliable for a lifetime of active use on stages or in studios or gathering spaces. We chose the best in entertainment grade Neutrik connectors and AES3 grade cabling, and then housed the connections in ultra-rugged machined anodized aluminum.

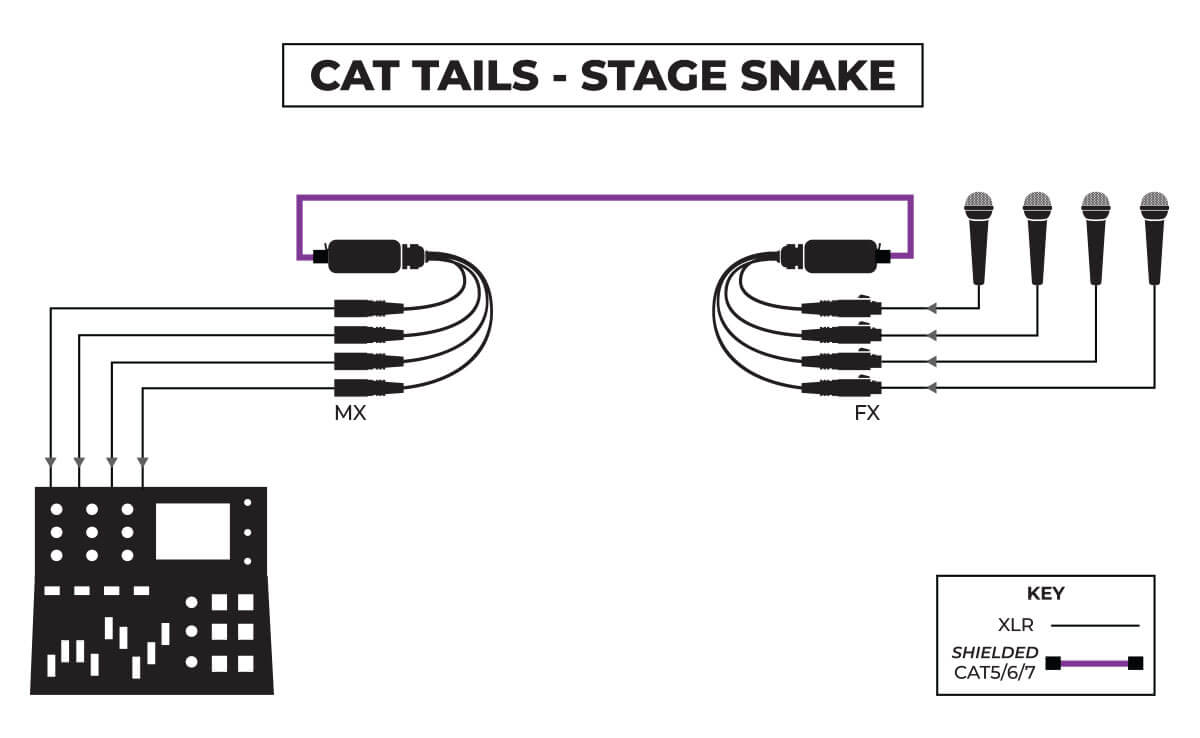

SoundTools CAT Tails and our other Analog-Audio-Over-Cat products were designed for a smaller footprint and easier set up and tear down. Simplify your stage set up with SoundTools CAT Tails by running one slim shielded category 5e or better ethernet cable to replace 4 bulky XLR cables.

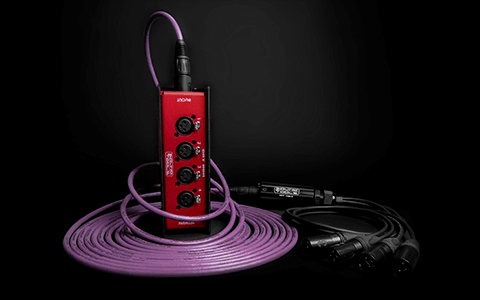

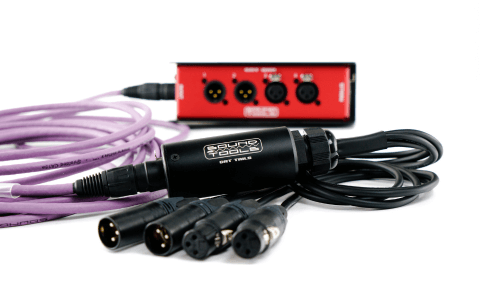

CAT Tails are compatible with all of our Analog-Audio-Over-Cat line of products, including the SoundTools CAT Box, CAT Rack, and WallCAT units. Use our entertainment grade line of cable including SoundTools SuperCAT, SuperCAT Sound, or SuperCAT 7 to ensure lossless audio and com with no interference and no distortion.
All SoundTools products are covered by a LIFETIME Happy Human warranty. At any point during the first year of ownership, all SoundTools products can be returned to the original place of purchase for a replacement or full refund. Simply contact the place of purchase or see https://soundtools.com/support to arrange the warranty coverage and arrange for SoundTools to cover shipping costs.
After the one year period all SoundTools products have Lifetime coverage against defects or malfunction and SoundTools will replace or repair the unit at no cost. If you wish to start a claim under the Lifetime Warranty contact the SoundTools dealer closest to you, or reach out directly to SoundTools support. Replacement units may be refurbished or B-Stock. SoundTools will cover shipment of the replacement or repaired unit.
*In the event your SoundTools product is discontinued, give us a shout and we will figure it out.
**For damaged SoundTools cables over one year past purchase date, the warranty covers no cost re-termination to the longest viable length.
- Do I need to use shielded CAT5 cable?
Yes. Each of the channels share a common ground. This is especially important with digital signals.
- How far can I send a my mic lines?
For balanced analog we've achieved distances of over 600ft using our SuperCAT cable. The results will vary with other CAT5 brands. For digital signals we recommend distances up to 330 ft as per AES/EBU standards.
- Can I use the CAT Tails with the SoundTools CAT Box or CAT Rack?
Absolutely! All of the Analog Audio over CAT family will work together, bringing analog audio over CAT to the places you need it most. Connect CAT Tails to CAT Box or CAT Racks and route your audio where you want.
- Can I send audio in both directions or do I need another gender CAT Box?

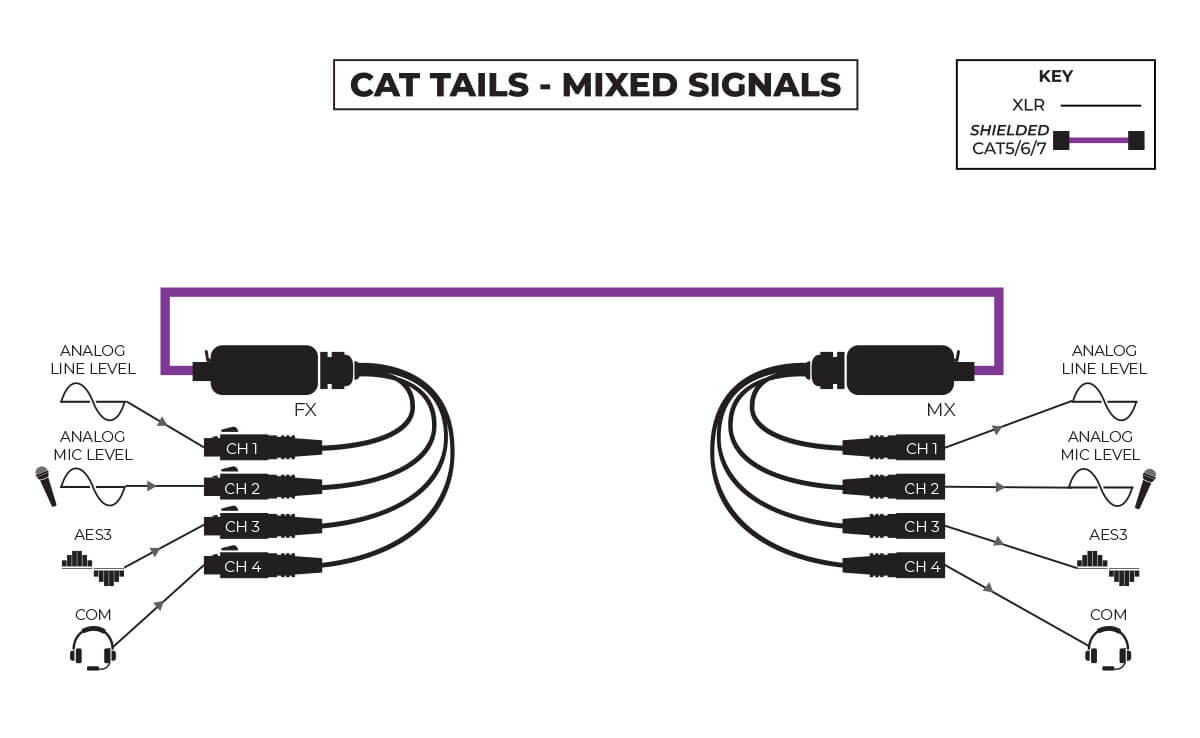

The CAT Tails are capable of sending or receiving signals, just like an analog snake. You can use gender turnarounds to send and receive. When sending mixed signals a high quality CAT cable is encouraged.
- Is shielded cable really required?
The short answer is no. But in order to use phantom power and to minimize noise, we strongly suggest you use properly shielded cable. You can check if your cable is shielded by checking for continuity on the RJ45 jack using a multi-meter. Still not sure? Just purchase SuperCAT and you know you'll be covered.
- Can I use it with my (digital console)?
While the CAT Box will work with any console on the market, it is important to note that it does not do any D/A conversion. The beauty of the CAT Box is that it sends analog audio over lightweight CAT cable, no conversion required. Hook directly up to your XLR connections and let CAT Box do the rest.
- Do you have a wiring diagram available?
You can download a PDF version of the CAT Family Wiring Diagram HERE
A breakout unit with 4 XLR or DMX cables capable of sending balanced analog audio, digital, DMX, and Clear-Com signals over shielded CAT5 cable. Available in Male or Female.
SoundTools SuperCAT XM is our most impressive cable yet, guaranteed to run AES50 without pops or dropouts over lengths up to 110 meters.
