- Meets CAT7 cable standards

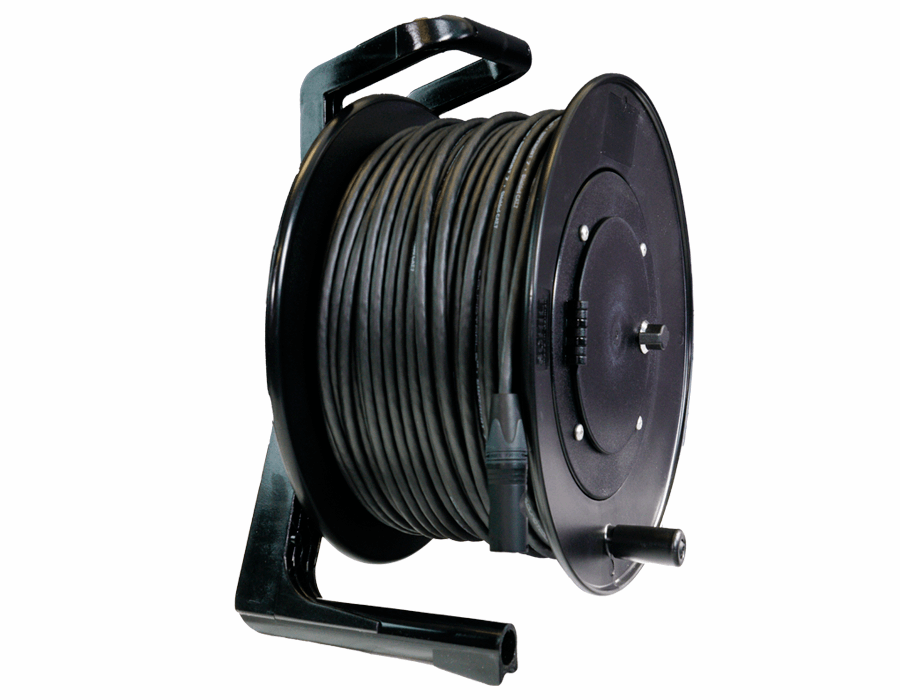

- 6.5mm diameter is easy to coil and lays flat

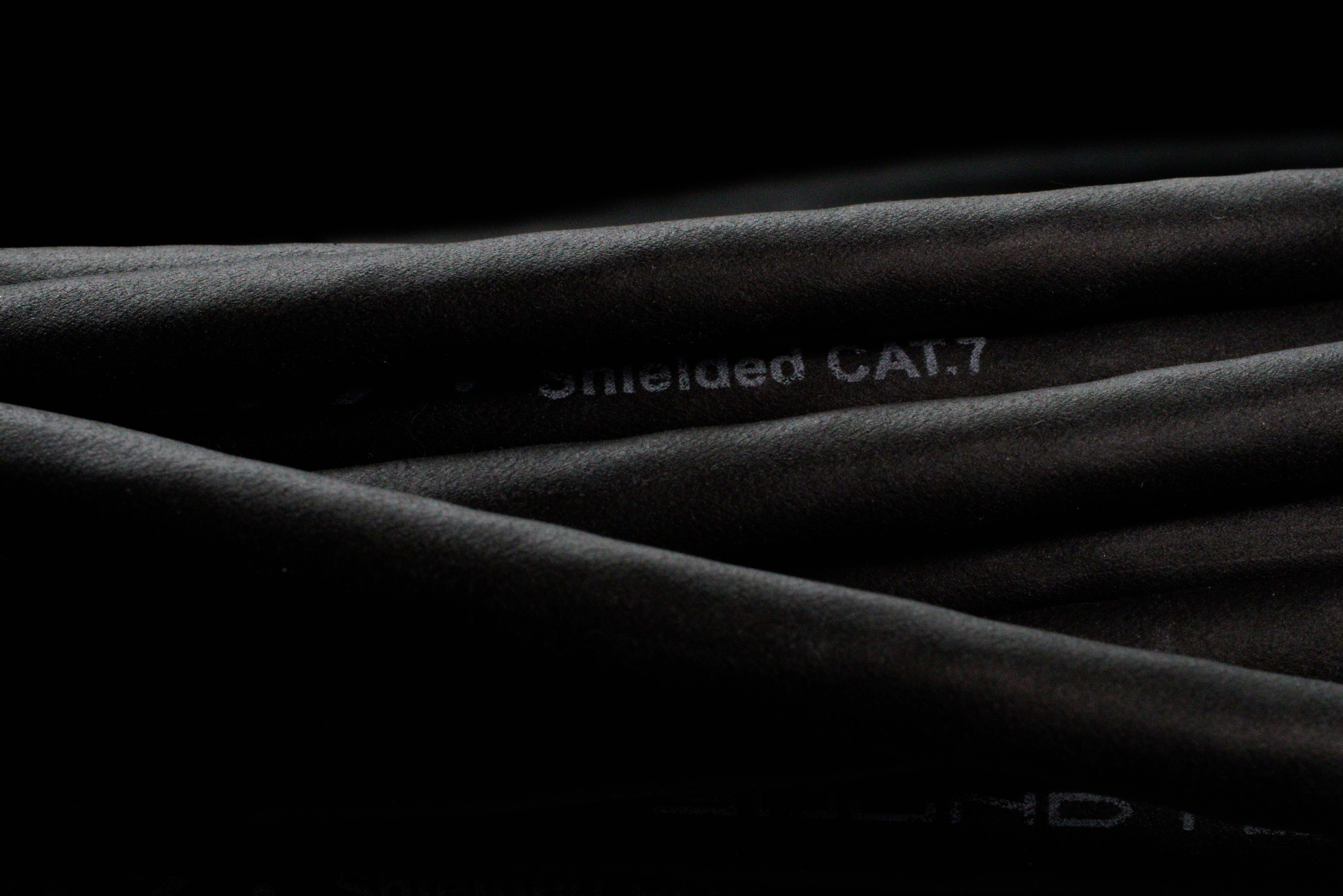

- Rugged polyurethane (PUR) jacket for maximum protection and flexibility
- Shielded (S/FTP) cable rated for CAT7 applications
- Optimized for data and analog audio over XLR applications
- Usable temperatures ranging from -20/+60℃ -4/+140℉
DIMENSIONS
*varies by length*
TECHNICAL SPECIFICATIONS
CAT7
AWG26/7
S/FTP
Halogen free polyurethane jacketed
100Ω Impedance
Delay skew: 10 ns @ 100 MHz/100 m
Bandwidth: up to 10Gbp/s @ 600MHz
PACKAGE CONTENTS
CAT7 cable terminated with genuine Neutrik etherCON connectors
WARRANTY INFORMATION
Lifetime Happy Human Warranty
PART NUMBER
varies by length
Durable and abrasion-resistant thanks to a robust polyurethane halogen-free jacket, and capable of handling extreme temperatures ranging from -20/+60℃ -4/+140℉. SuperCAT 7 is ready for the toughest indoor or outdoor environments.
SuperCAT 7 meets CAT7 cable standards for high bandwidth data needs. 26/7 AWG four foil-shielded and precisely-twisted pairs with stranded wire for enhanced shielding and crosstalk rejection. SuperCAT 7 is rated for bandwidth speeds of up to 10Gbp/s @ 600MHz.

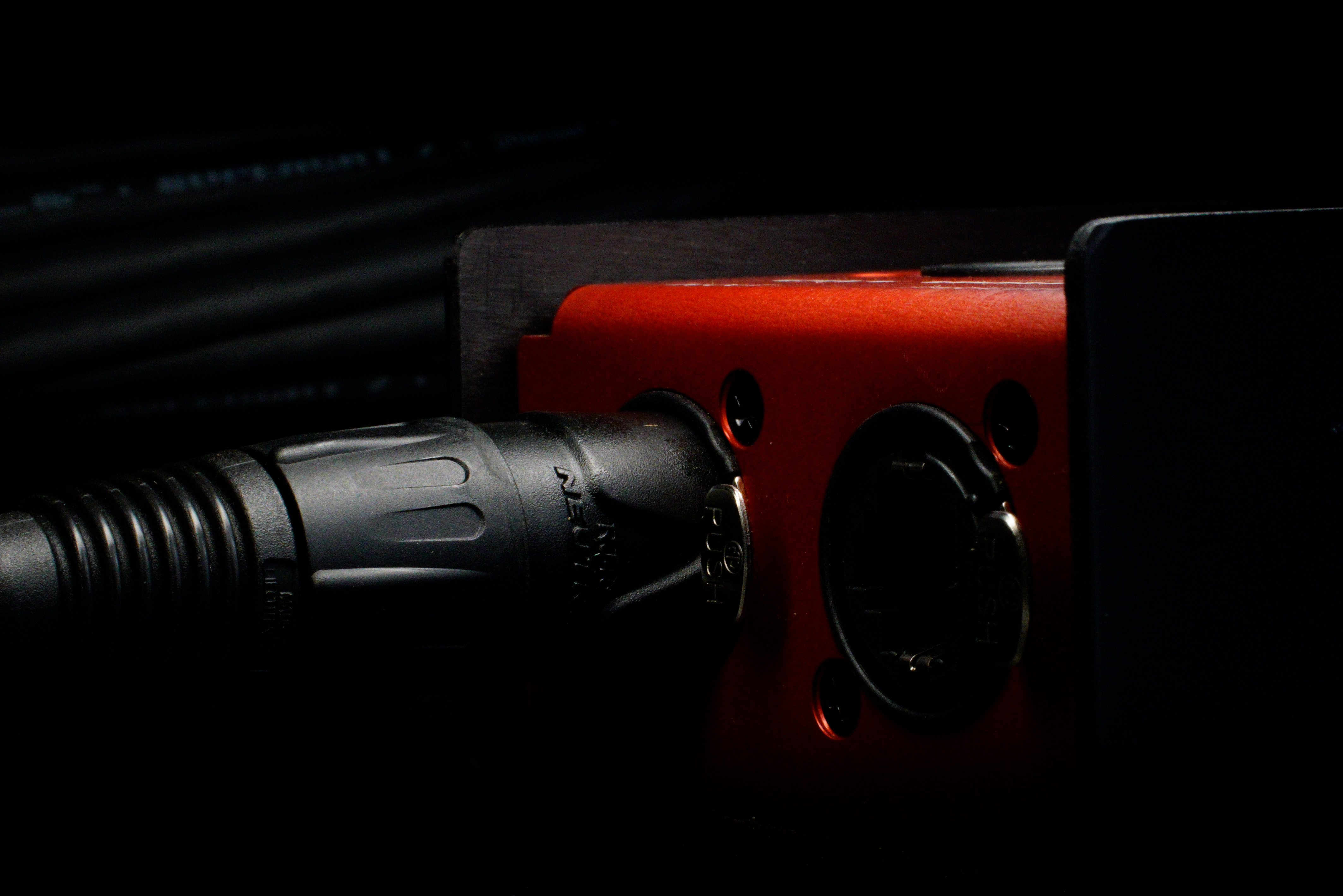

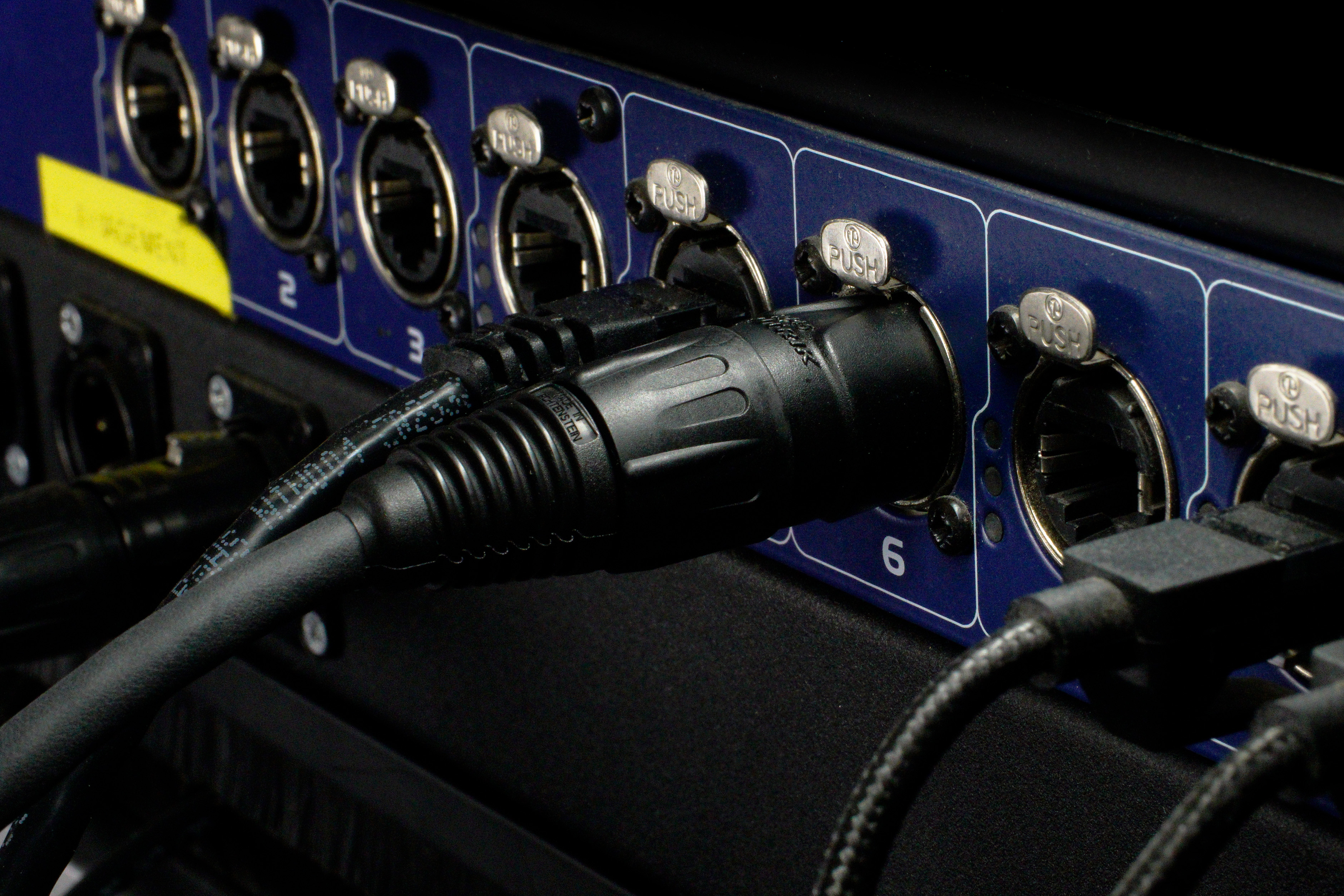

SuperCAT 7 cable is designed to handle the high-speed data requirements of modern digital consoles or can be used to send analog XLR audio, COM, AES3 or DMX using SoundTools products.
All SoundTools products are covered by a LIFETIME Happy Human warranty. At any point during the first year of ownership, all SoundTools products can be returned to the original place of purchase for a replacement or full refund. Simply contact the place of purchase or see https://soundtools.com/support to arrange the warranty coverage and arrange for SoundTools to cover shipping costs.
After the one year period all SoundTools products have Lifetime coverage against defects or malfunction and SoundTools will replace or repair the unit at no cost. If you wish to start a claim under the Lifetime Warranty contact the SoundTools dealer closest to you, or reach out directly to SoundTools support. Replacement units may be refurbished or B-Stock. SoundTools will cover shipment of the replacement or repaired unit.
*In the event your SoundTools product is discontinued, give us a shout and we will figure it out.
**For damaged SoundTools cables over one year past purchase date, the warranty covers no cost re-termination to the longest viable length.
- Can I use your cable for data/analog?
Short answer, yes! Long answer, the SuperCAT 7 cable can be use for either digital signals or analog and sometimes both at the same time. Using the analog capabilities you can run four separate lines of AES over the system, or simply use the cable for an all digital connection.
- What spec is the SuperCAT 7 cable?
SuperCAT 7 cable is a CAT7 AWG26/7 S/FTP specification using a halogen free polyurethane. The cable is flame & UV resistant and is specifically designed for medium to long cable runs, exposure to the elements, and portable applications.
- Does it come in other colors?
Not yet. At this time SuperCAT 7 only comes in black.
- Is it possible to buy unterminated lengths?
We currently provide unterminated cable at lengths of 500 ft. and above. We will try to accommodate custom lengths when possible.
- What kind of shielding does your cable use?

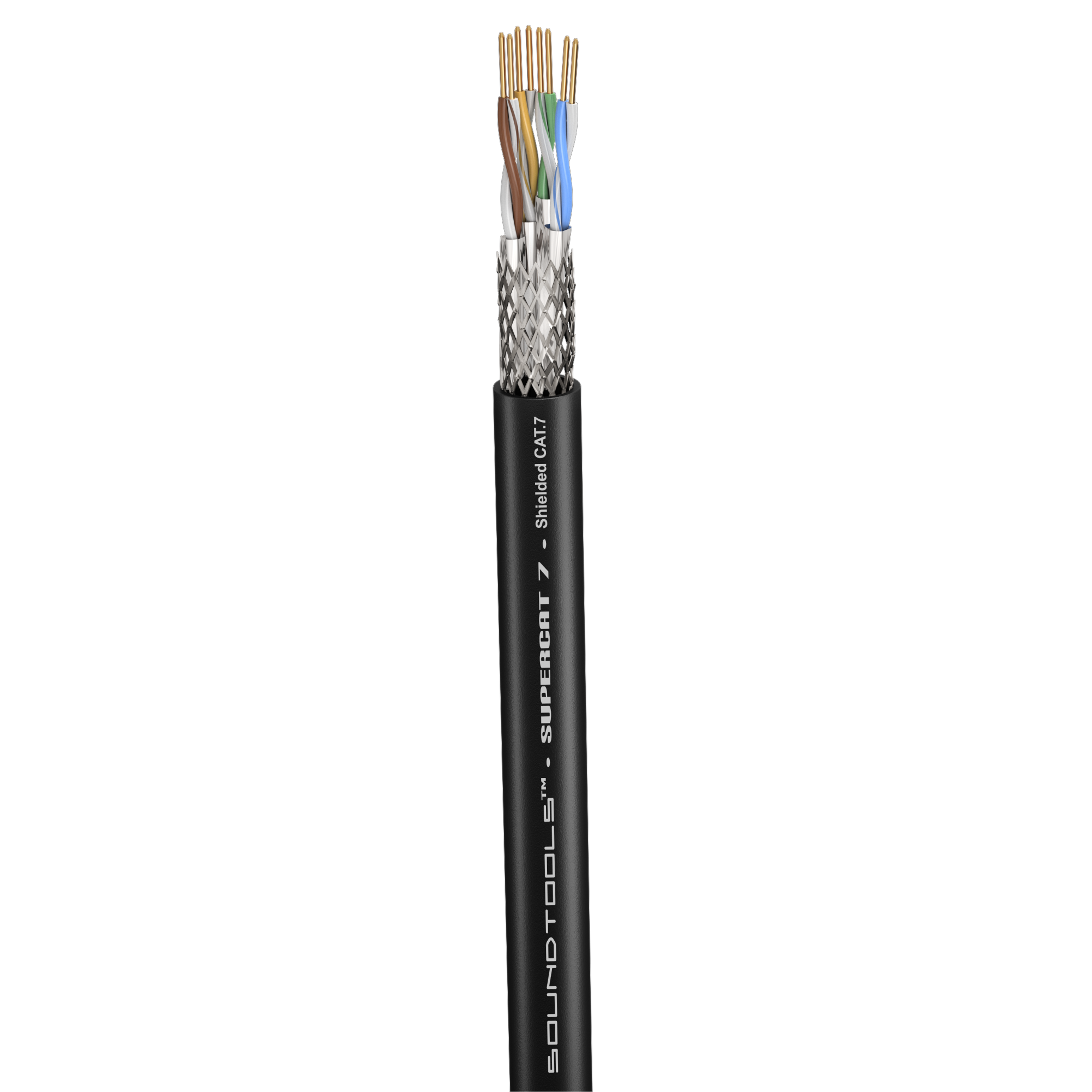

The SoundTools SuperCAT 7 cable uses a braided outer shield and a foil shield for each twisted pair. We connect the shield to the RJ45 plug for continuity over ground.
