- Exceeds standards for CAT5e
- Precisely twisted, individually shielded pairs allow for both audio and data transmissions

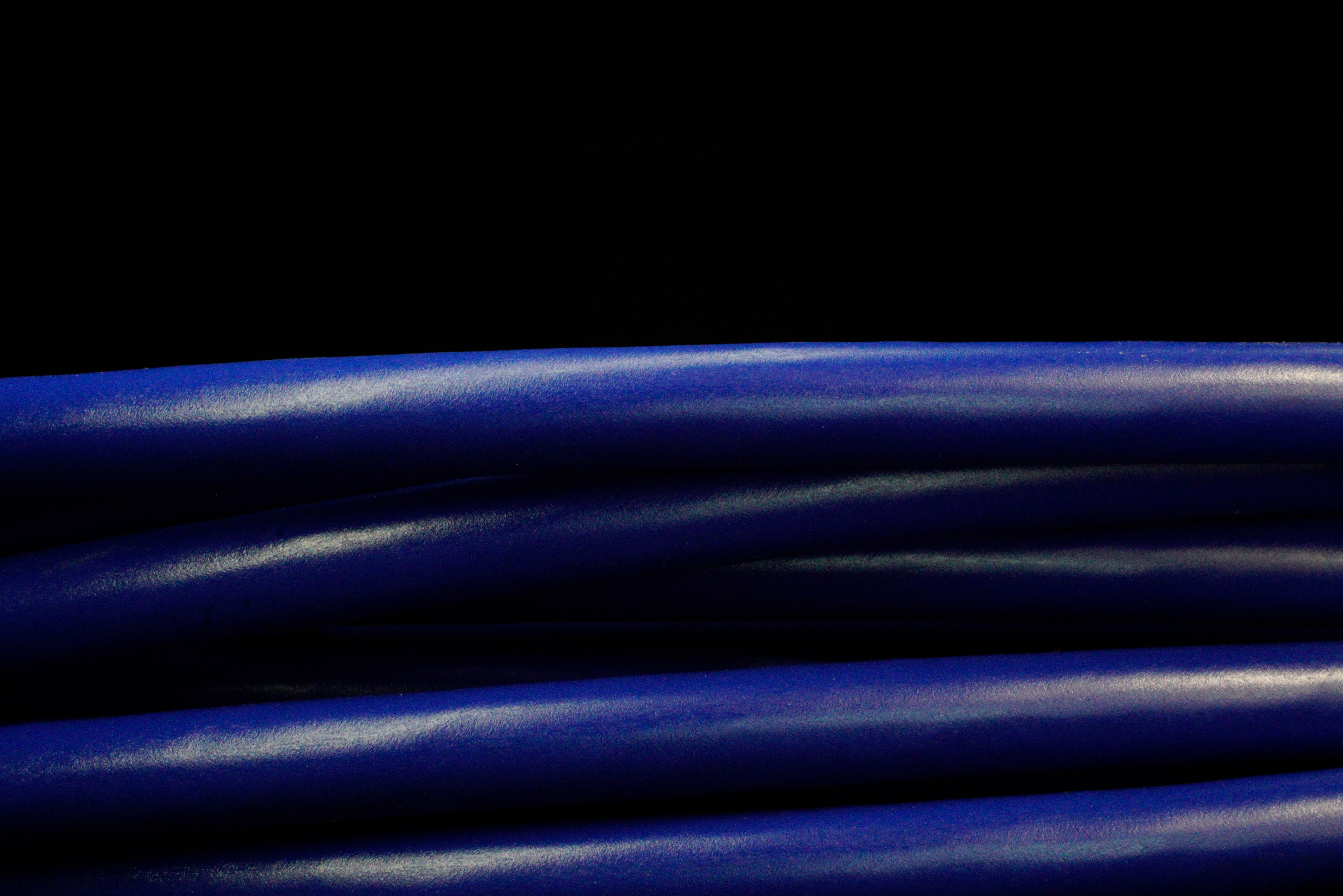

- Rugged polyurethane (PUR) jacket for maximum protection, flexibility, and pull strength

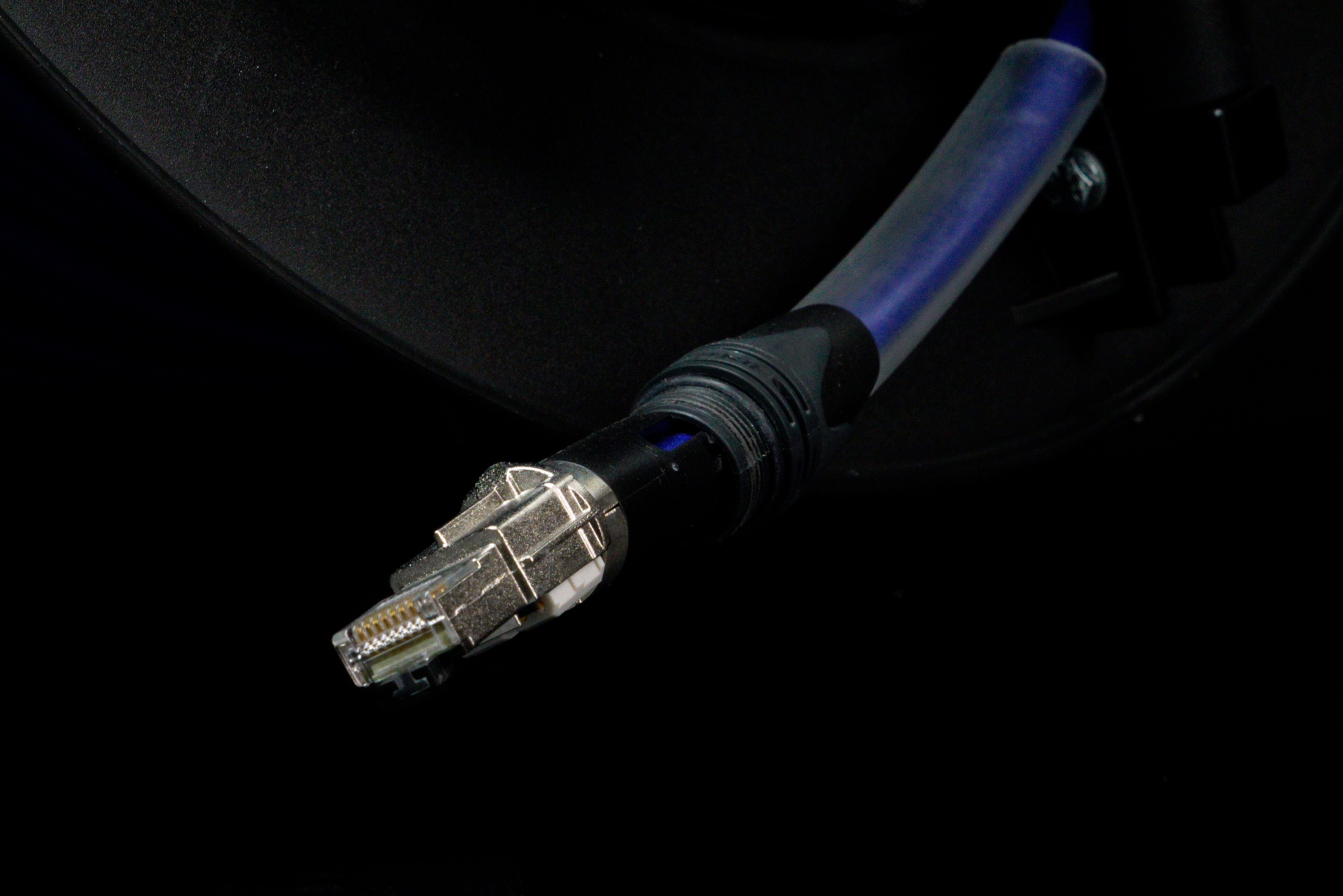

- Can be terminated to tails, standard EtherCON ends, or RJ45
DIMENSIONS
*varies by length*
TECHNICAL SPECIFICATIONS
CAT5e
AWG26/19
U/FTP
Halogen free polyurethane jacketed
100Ω Impedance
Return loss @100MHz - 28 dB/100m
PACKAGE CONTENTS
CAT5e cable terminated with genuine Neutrik NE8MC-B-1 connectors
WARRANTY INFORMATION
Lifetime Happy Human Warranty
PART NUMBER
varies by length
Designed by Dave Rat to be the most versatile and reliable CAT cable on the market, the SuperCAT Sound cable combines high performance data cable with the best in pro audio. We took 12 conductor cable, added a non-woven wrap for increased flexibility, and jacketed it all in extremely durable polyurethane. What you get is an easy-to-handle CAT cable that can withstand the rigors of pro audio use, night-after-night, no matter the environment.
One of the things that makes SuperCAT Sound so special is that each twisted pair has its own drain wire and shield, meaning that it can be terminated directly to tails (4 XLR, DMX, ¼” TRS, or mini plug connections) or with high-quality RJ45/etherCON connectors. Each pair is precisely twisted to eliminate crosstalk, reject outside noise, and allow for higher frequency response. These cables are built with touring in mind.
Why pay more for SuperCAT Sound?
- It’s cost efficient. Combined with our other SoundTools products like the CAT Box, CAT Tails and CAT Racks, audio/data over CAT uses one highly durable and flexible cable where others use four.
- This is the last cable you’ll need to buy. We build SuperCAT Sound cables to take an absolute beating on the road and still deliver flawless audio and data. It’s the same cable RAT Sound uses for major festivals like Coachella, Stagecoach and international touring acts like Pearl Jam and Alt-J.
- Your confidence is worth it. With SuperCAT Sound, you know you have the best cable available on the market. Our Happy Human Warranty guarantees your happiness with SuperCAT cables for life.
All SoundTools products are covered by a LIFETIME Happy Human warranty. At any point during the first year of ownership, all SoundTools products can be returned to the original place of purchase for a replacement or full refund. Simply contact the place of purchase or see https://soundtools.com/support to arrange the warranty coverage and arrange for SoundTools to cover shipping costs.
After the one year period all SoundTools products have Lifetime coverage against defects or malfunction and SoundTools will replace or repair the unit at no cost. If you wish to start a claim under the Lifetime Warranty contact the SoundTools dealer closest to you, or reach out directly to SoundTools support. Replacement units may be refurbished or B-Stock. SoundTools will cover shipment of the replacement or repaired unit.
*In the event your SoundTools product is discontinued, give us a shout and we will figure it out.
**For damaged SoundTools cables over one year past purchase date, the warranty covers no cost re-termination to the longest viable length.
- Can I use your cable for data/analog?
Short answer, yes! Long answer, the SuperCAT Sound cable can be use for either digital signals or analog and sometimes both at the same time. Using the analog capabilities you can run four separate lines of AES over the system, or simply use the cable for an all digital connection.
- What spec is the SuperCAT cable?
SuperCAT Sound cable is a CAT5e AWG26/19 U/FTP spec using a Halogen free polyurethane. The cable is flame & UV resistant and is specifically designed for long cable runs, exposure to the elements, and portable applications.
- Does it come in other colors?
No. At this time SuperCAT Sound only comes in blue.
- Is it possible to buy unterminated lengths?
We currently provide unterminated cable at lengths of 500 ft. and above. We will try to accommodate custom lengths when possible.
- What kind of shielding does your cable use?
The SoundTools SuperCAT Sound cable uses a foil shield with drain wire which we connect to the RJ45 jack for continuity over ground.
- Can I terminate XLR connectors on the ends?
The SoundTools SuperCAT Sound cable is the only cable of its kind. Not only can you terminate using RJ45 (8P8C), a separate drain wire for each of the twisted pairs means you can terminate directly to XLR connectors as well.
