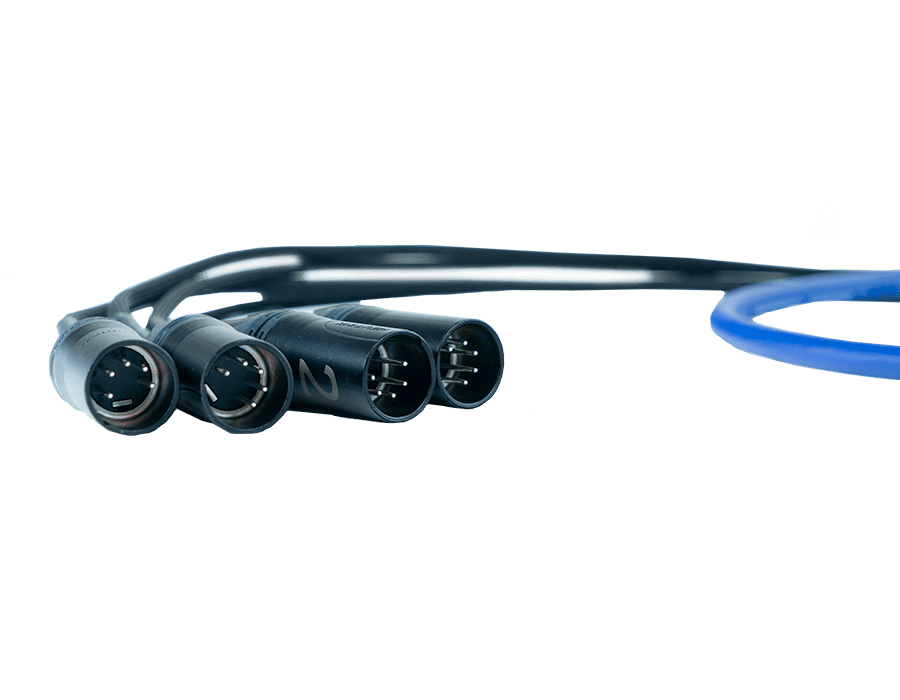

- One black shielded Neutrik etherCON RJ45 connector and four black Neutrik DMX 5-pin connectors, laser engraved 1-4
- Connects to Cat5e cables with Neutrik etherCON adapter (NE8FF/NE8FFX6-W)
- Made with SuperCAT Sound cable which excels in durability and reliability
- 60 inch total length with a 54 inch span
DIMENSIONS
In Package
Height x Width x Depth:
9 x 10.5 x 1 in (228.6 x 266.7 x 25.4mm)
Weight: 13 oz (.368 KG)
COMPATIBLE WITH
Analog audio (including phantom power*)
DMX signals
AES3
InterCOM
*Requires shielded cable for full functionality
TECHNICAL SPECIFICATIONS
Available in Male or Female DMX connectors
Male etherCON connection
Compatible with all SoundTools Analog Audio Over CAT5 products
Connects to CAT5/6/7 cables with Neutrik etherCON adapter (NE8FF/NE8FFX6-W)
AES72-2O compliant
DOCUMENTATION
PACKAGE CONTENTS
SuperCAT Sound Tails breakout snake
Blue SoundTools Canvas bag
User documentation
WARRANTY INFORMATION
PART NUMBER
EtherCON female DMX: SCST-FD-E
EtherCON male DMX: SCST-MD-E
The SoundTools SuperCAT Sound cable allows the SuperCAT Tails to achieve a new level of simplicity at a lower cost while enhancing reliability and reducing weight. The SuperCAT Sound Tails implement a male cable mount etherCON on one end, terminating to four XLR 3-pin, DMX 5-pin, or quarter-inch connectors on the other end. The SuperCAT Tails can be directly plugged into SoundTools CAT Tails forming a disconnectable four channel male-to-female cable or to create four channel adaptors of differing genders and connector types.
The SuperCAT Tails combine key aspects of both the SoundTools CAT Tails and SuperCAT Sound cable to create a high-quality, durable and cost-effective product specifically aimed to excel in high-impact, touring environments. The SuperCAT Sound cable is designed with sound in mind; each of the four twisted pairs has its own separate drain wire and shield, and each pair is precisely twisted to eliminate crosstalk, reject outside noise, and allow for higher frequency response.

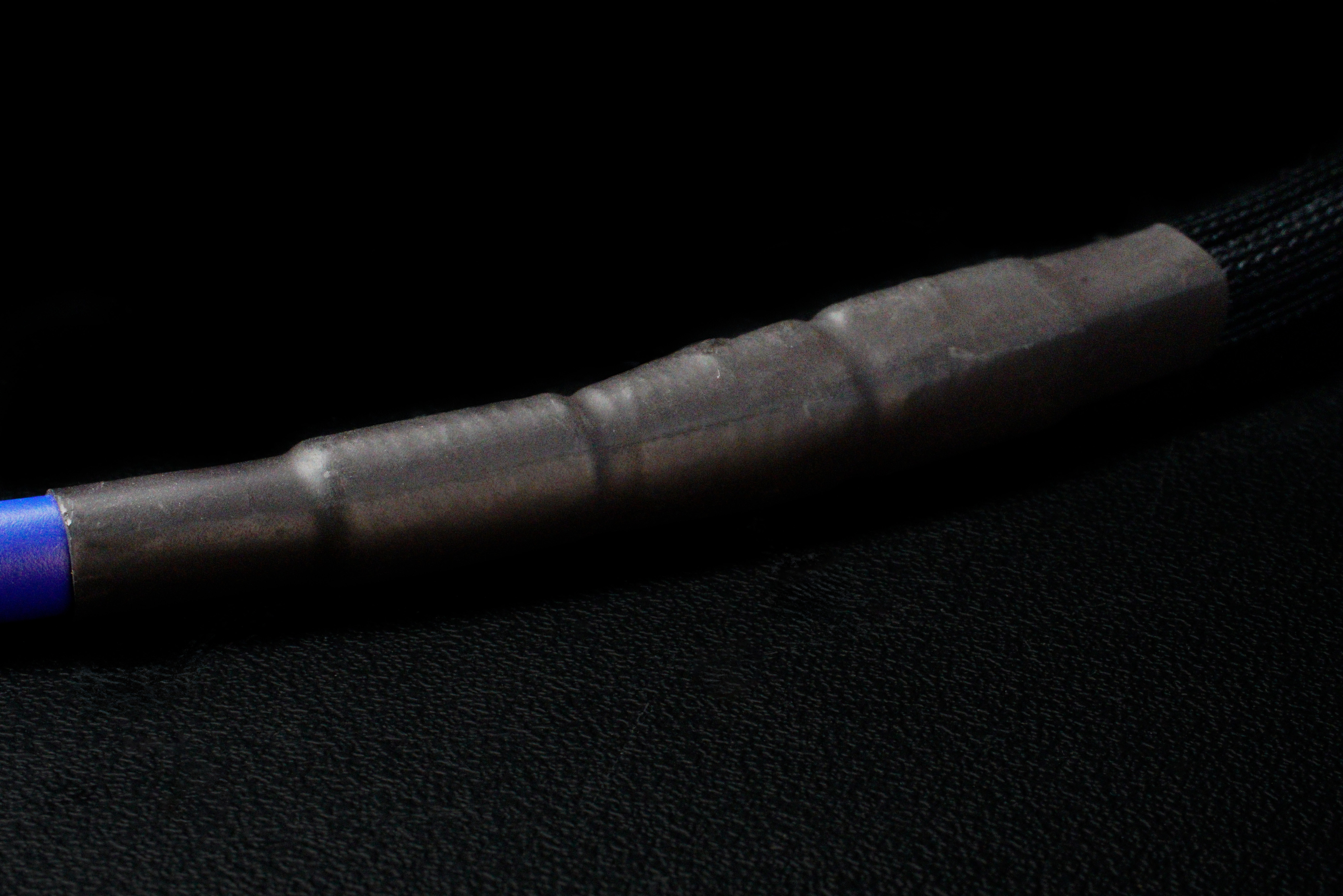

The 3-band strain relief system designed by SoundTools offers enhanced durability and prevents the shrink-wrap from flaring or slipping at the crucial junction of the four cables.
Wrap 1: Binds the four nylon mesh covered cables together.
Wrap 2: Offers support for the transition of the four cables to the SuperCAT Sound Cable.
Wrap 3: Adds diameter and maximizes adhesion of the shrink tubing the SuperCAT Sound Cable.

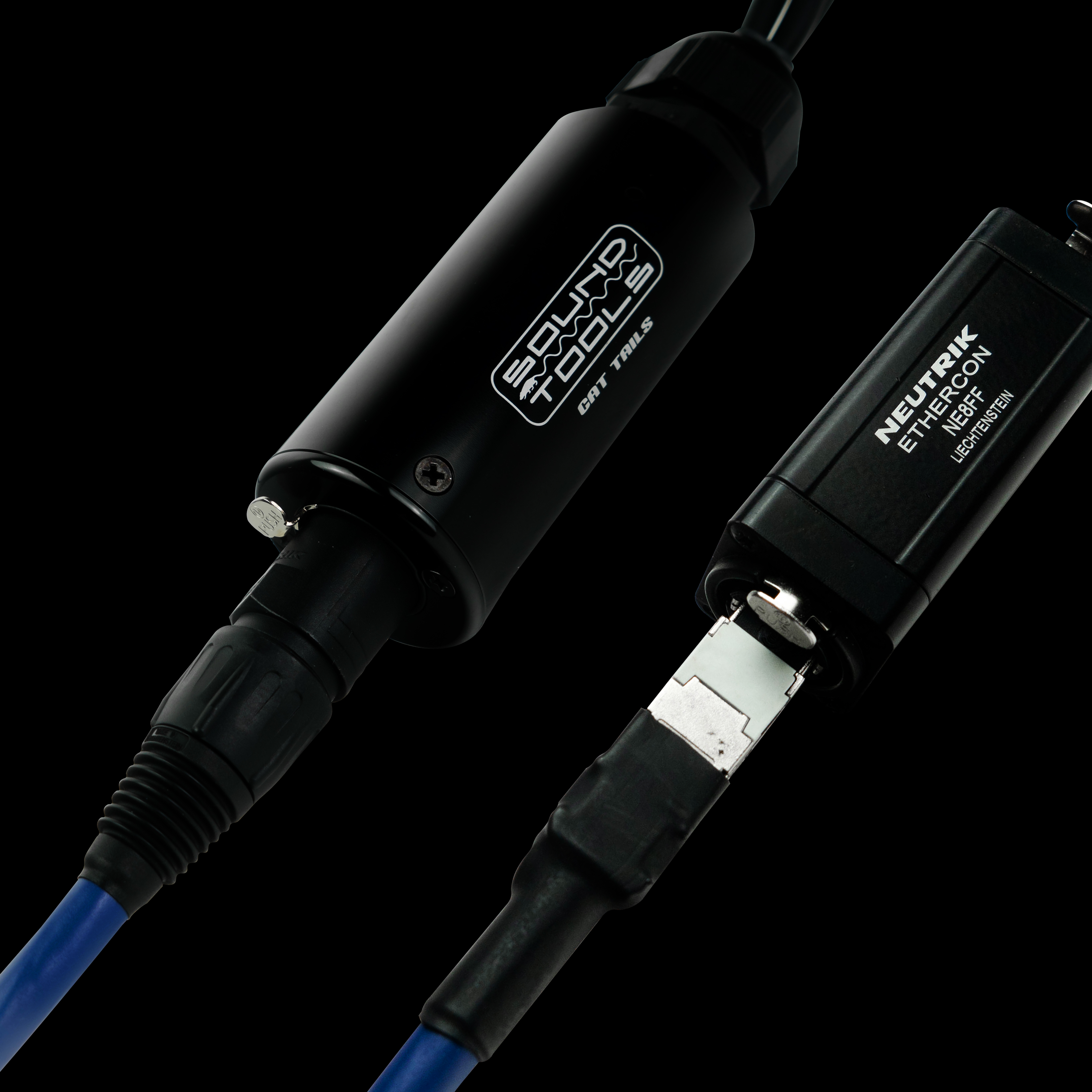

MODULARThe SuperCAT Tails are compatible with all the products in the SoundTools Analog Audio over CAT family, including the SoundTools CAT Box, CAT Rack, CAT Tails, and WallCAT, allowing you to create a comprehensive and versatile modular snaking system. They can also be used with a shield etherCON connector such as the Neutrik etherCON adapter (NE8FF/NE8FFX6-W).
One of our goals at SoundTools is to minimize waste, and whenever possible, we incorporate reusability into our packaging designs. Each of our SuperCAT Tails are packaged in a sturdy canvas bag, which allows you to not only stay organized while protecting your tools but also makes for a fantastic toiletry bag, sharpie case, or snack holder; the possibilities are endless.
All SoundTools products are covered by a LIFETIME Happy Human warranty. At any point during the first year of ownership, all SoundTools products can be returned to the original place of purchase for a replacement or full refund. Simply contact the place of purchase or see https://soundtools.com/support to arrange the warranty coverage and arrange for SoundTools to cover shipping costs.
After the one year period all SoundTools products have Lifetime coverage against defects or malfunction and SoundTools will replace or repair the unit at no cost. If you wish to start a claim under the Lifetime Warranty contact the SoundTools dealer closest to you, or reach out directly to SoundTools support. Replacement units may be refurbished or B-Stock. SoundTools will cover shipment of the replacement or repaired unit.
*In the event your SoundTools product is discontinued, give us a shout and we will figure it out.
**For damaged SoundTools cables over one year past purchase date, the warranty covers no cost re-termination to the longest viable length.
- Do I need to use shielded CAT5 cable when sending analog audio signals?
Not always, but it is recommended. Unshielded cable will send
- How far can I send my mic lines?
For balanced analog we've achieved distances of over 600ft using our SuperCAT cable. The results will vary with other CAT5 brands. For digital signals we recommend distances up to 330 ft as per AES/EBU standards.
- Do you have a wiring diagram available?
You can download a PDF version of the CAT Family Wiring Diagram HERE
