- Cat6A grade cable
- S/FTP double shielding eliminates crosstalk and interference
- Red color makes it easy to see which cable is safe to run critical signals over long distances
- Guaranteed to carry AES50 up to 110 meters
- Polyurethane jacket resists abrasion and ensures flexibility even in cold weather
LENGTHS
10 meter
60 meter

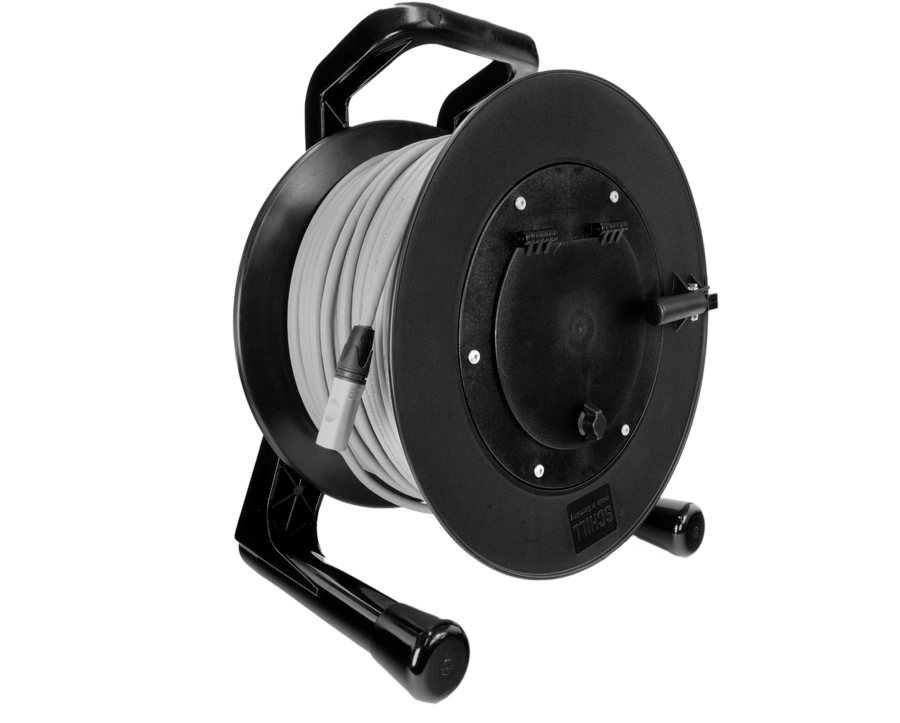

100 meter on cable drum
TECHNICAL SPECIFICATIONS
CAT6a
AWG24/7
S/FTP
Halogen free polyurethane jacketed
100Ω Impedance
Delay skew: 12 ns @ 100 MHz/100 m
Bandwidth: up to 10Gbp/s @ 500MHz
PACKAGE CONTENTS

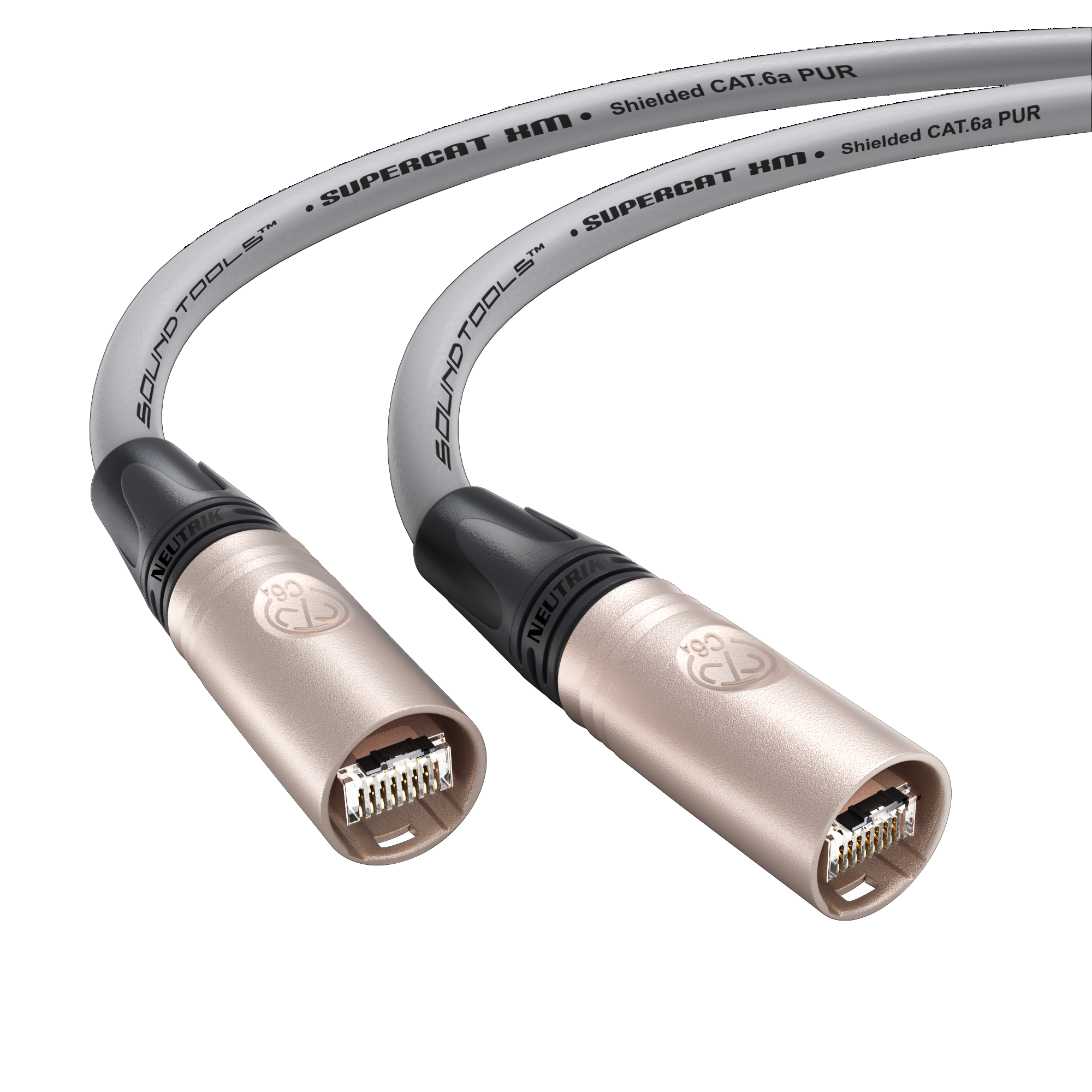

CAT6a cable terminated with genuine Neutrik etherCON connectors
WARRANTY INFORMATION
Lifetime Happy Human Warranty
PART NUMBER
SCXM42-10 (10 meter)
SCXM42-60 (60 meter)
SCXM421-100 (100 meter with drum)
Reliable Data on Ultra Long Cable runs that exceed equipment maximum specs. SuperCAT XM is guaranteed to carry dropout-free AES50 signals up to 110 meters when using lengths of 100 meter cable plus 10 meter SuperCat XM extensions with Cat6A couplers. No static pops or dropouts. Works great with AES3, Dante, Milan, AVB, MADI as well.
SuperCAT XM is built to handle any concert, stadium, or festival environment. Rugged polyurethane jacketing resists abrasion while remaining flexible even in extreme weather environments. With reliability at long distances, you can confidently show up at your next gig and know your drive line won’t let you down.
SuperCAT XM is a stranded conductor cable that has been designed and tested to exceed the data integrity and usable lengths of solid conductor cables while maintaining superior flexibility and wind-ability. The red coloring makes it easy to see which cable to plug into for guaranteed audio and data over 100 meter runs.
All SoundTools products are covered by a LIFETIME Happy Human warranty. At any point during the first year of ownership, all SoundTools products can be returned to the original place of purchase for a replacement or full refund. Simply contact the place of purchase or see https://soundtools.com/support to arrange the warranty coverage and arrange for SoundTools to cover shipping costs.
After the one year period all SoundTools products have Lifetime coverage against defects or malfunction and SoundTools will replace or repair the unit at no cost. If you wish to start a claim under the Lifetime Warranty contact the SoundTools dealer closest to you, or reach out directly to SoundTools support. Replacement units may be refurbished or B-Stock. SoundTools will cover shipment of the replacement or repaired unit.
*In the event your SoundTools product is discontinued, give us a shout and we will figure it out.
**For damaged SoundTools cables over one year past purchase date, the warranty covers no cost re-termination to the longest viable length.
- What is the Best Sound Tools Cable for long data cable runs?
SuperCat XM is specifically designed for long data runs.
- Are CAT6a, Cat 7 and Cat5e interchangeable?
Yes to some degree. Cat6a and Cat 7 can be used when Cat5e is specified. Cat6a and Cat7 can typically be used interchangeably for short runs less than 30 meters. For long runs of 100 meters, Cat6a tends to be better than Cat7.
- Is SuperCat XM as easy to wind and as flexible as SuperCat sound?
No, SuperCat XM has thicker wire gauge conductors and special insulators that are a bit stiffer. SuperCat Sound is our strongest and also lightest weight cable.
- What kind of shielding does your cable use?

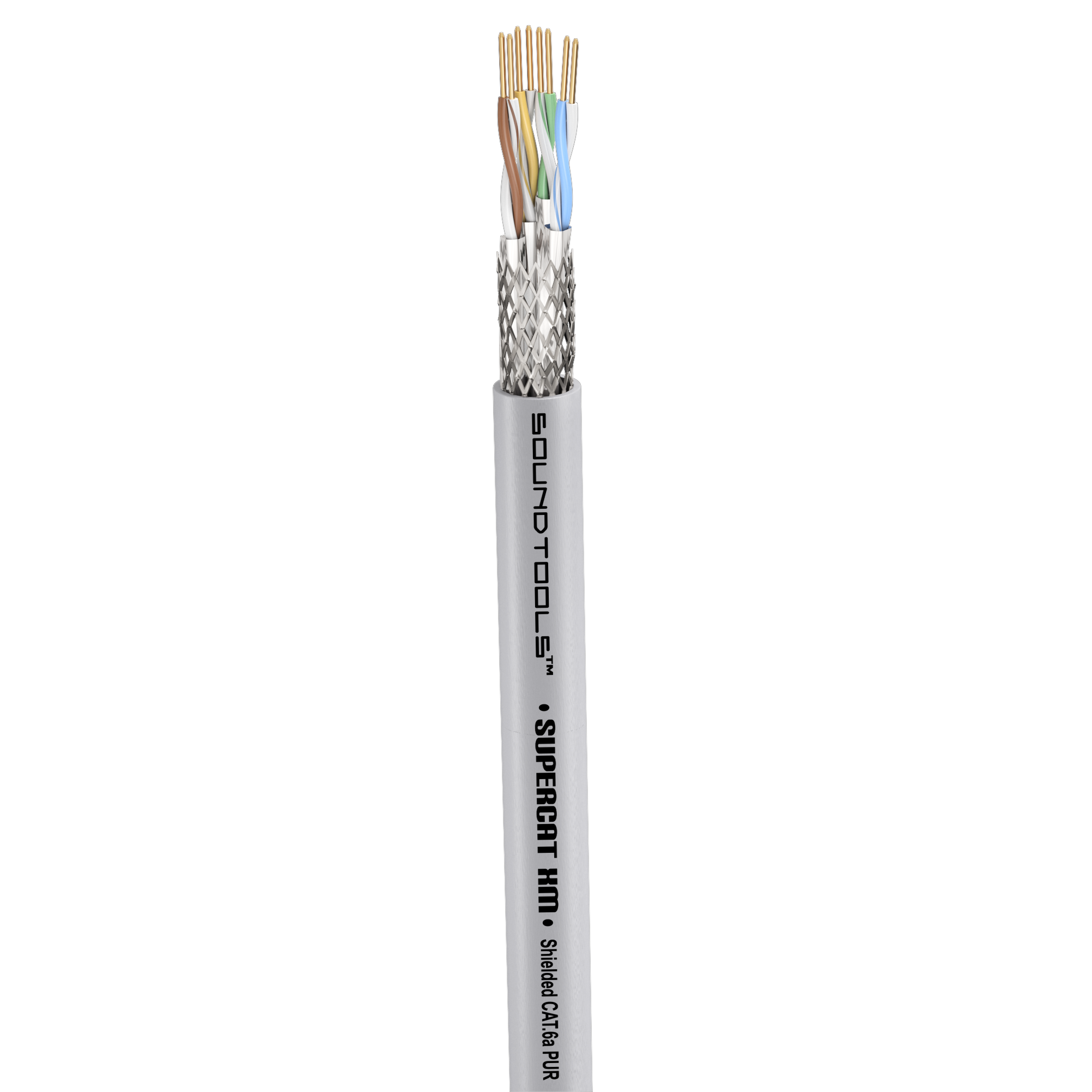

The SoundTools SuperCAT XM cable uses a braided outer shield and a foil shield for each twisted pair. We connect the shield to the RJ45 plug for continuity over ground.
SoundTools SuperCAT XM is our most impressive cable yet, guaranteed to run AES50 without pops or dropouts over lengths up to 110 meters.
